SWIR LED Illuminations

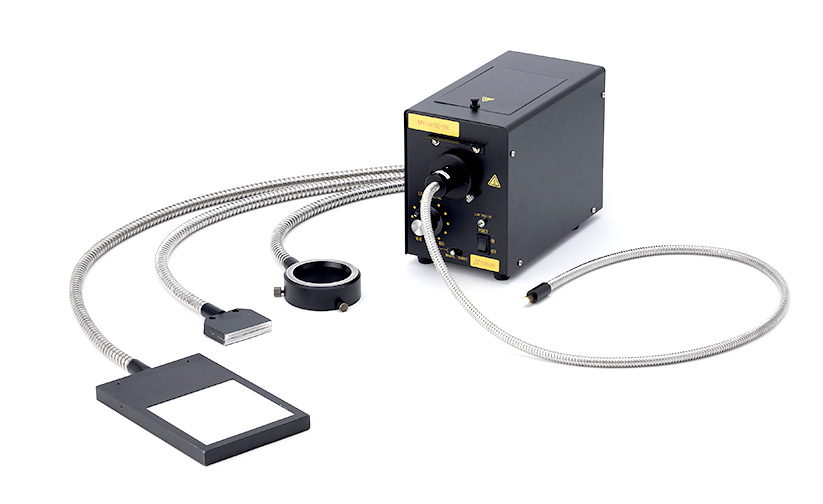

Broadband Halogen illuminations
- Wavelength range：400nm～1700nm (peak wavelength: 1000nm）
- 150W halogen lamp
- Filter attachment / detachment mechanism
- Possible to select wavelength using heat-resistant bandpass filters (800 nm, 900 nm, 1000 nm, 1100 nm, 1200 nm, 1300 nm, 1400 nm)
- Heat-resistant light guides
- Spot / Ring / Line / Backlight options available
Single wavelength SWIR illumination
Axiom Optics offers LED bars, rings and backlights covering the full range of SWIR wavelengths (1000 nm to 1700 nm). With flexible configurations (adjustable illumination angles, different window options), standard connectors and long lifetime, our SWIR LED illuminations are perfect for machine vision applications with SWIR cameras.

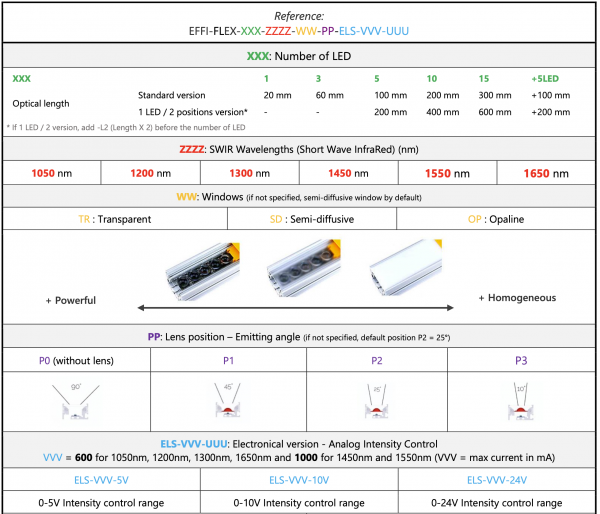

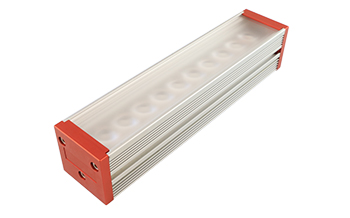

SWIR LED bar

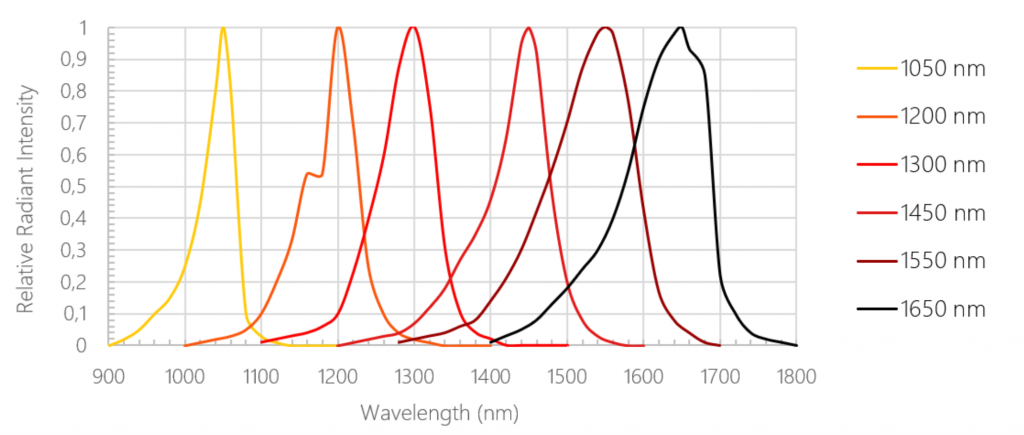

- Available at 1050 nm, 1200 nm, 1300 nm, 1450 nm, 1550 nm or 1650 nm
- From 1 to 15+ LEDs

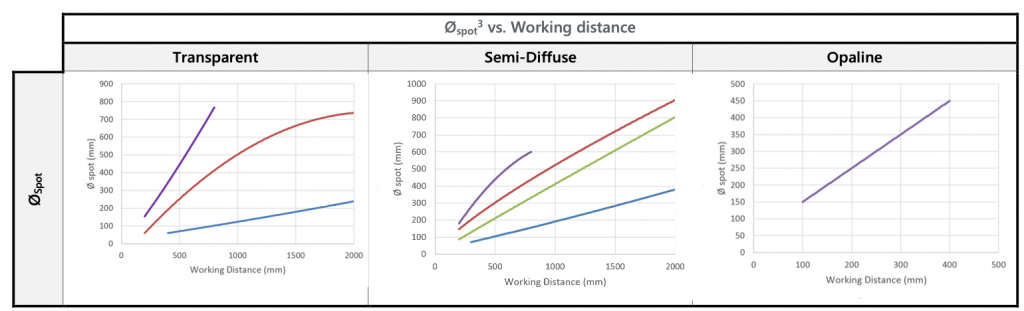

- 3 types of window: transparent, semi-diffuse or opaline

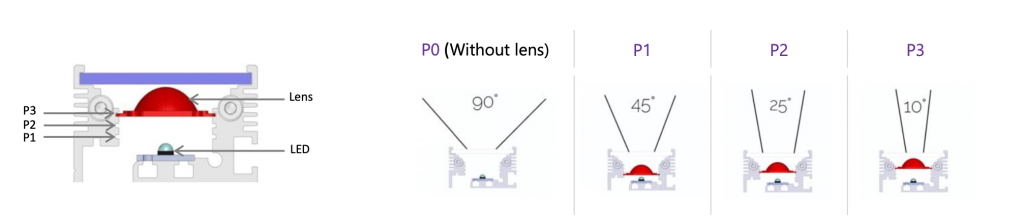

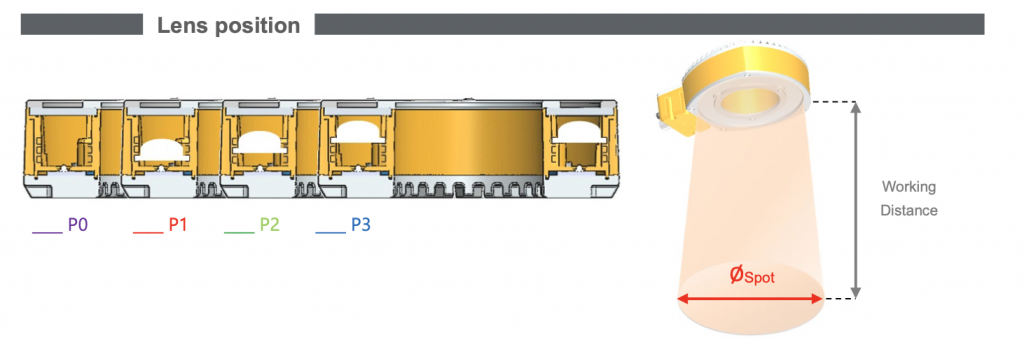

- Adjustable emitting angle (90º, 45º, 25º and 10º)
- Linescan or cylindrical lens options
- Analog intensity control for dimming

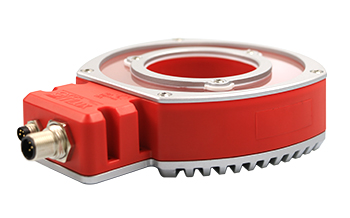

SWIR LED ring
- Available at 1050 nm, 1200 nm, 1300 nm, 1450 nm, 1550 nm or 1650 nm
- 3 types of window: transparent, semi-diffuse or opaline
- Adjustable emitting angle (90º, 45º, 25º and 10º)
- CW or strobe mode
- 58 mm ID
- Overall dim 117 mm x 151 mm x 40 mm
- 24 VDC power supply

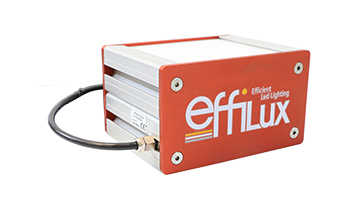

SWIR LED backlight
- Available at 1050 nm, 1200 nm, 1300 nm, 1450 nm, 1550 nm or 1650 nm
- Available from 100 mm x 100 mm to 300 mm x 300 mm
- 80mm thickness

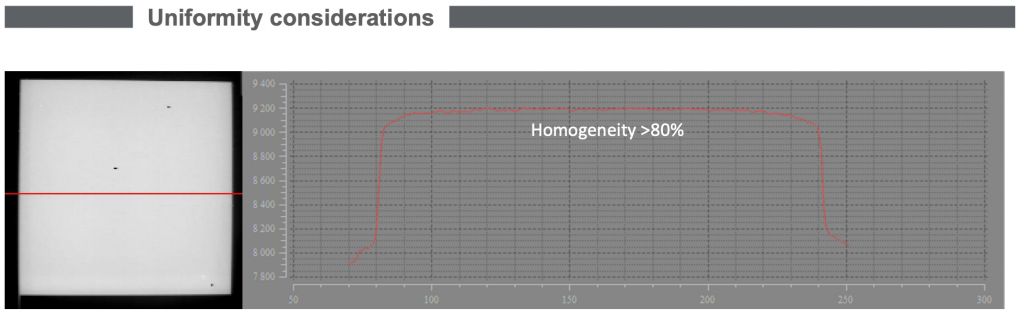

- high uniformity (homogeneity >80%)

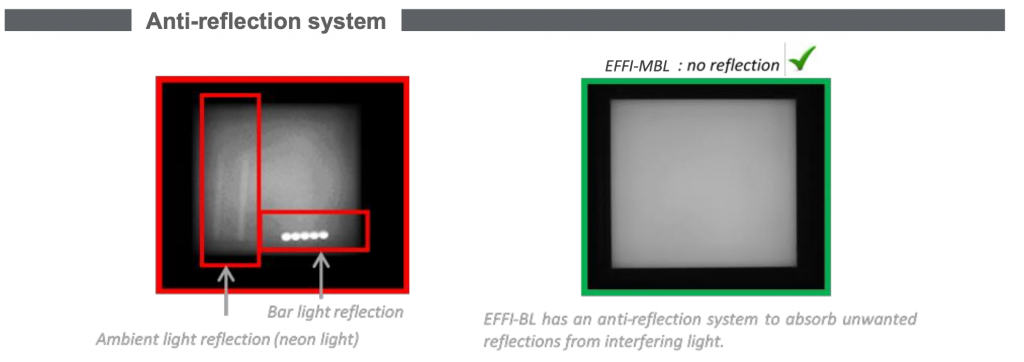

- anti-reflection system
- Analog intensity control for dimming

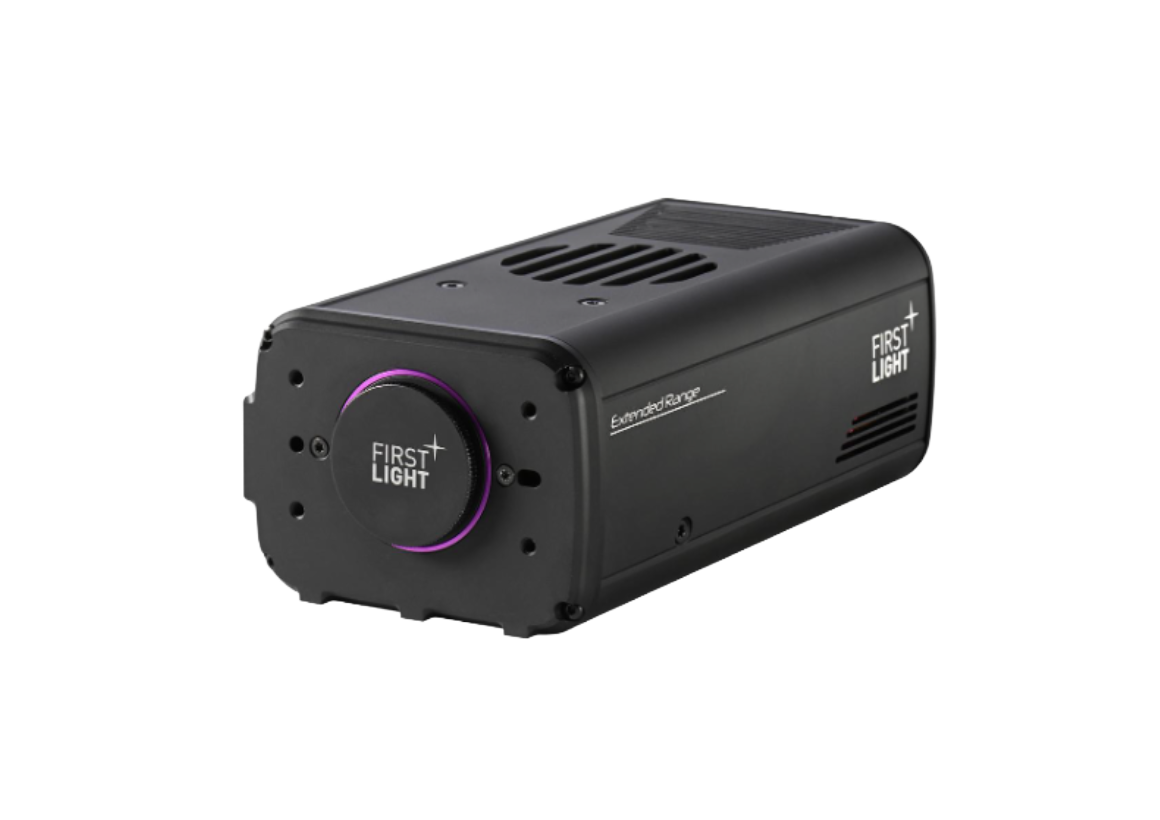

Recommended SWIR cameras

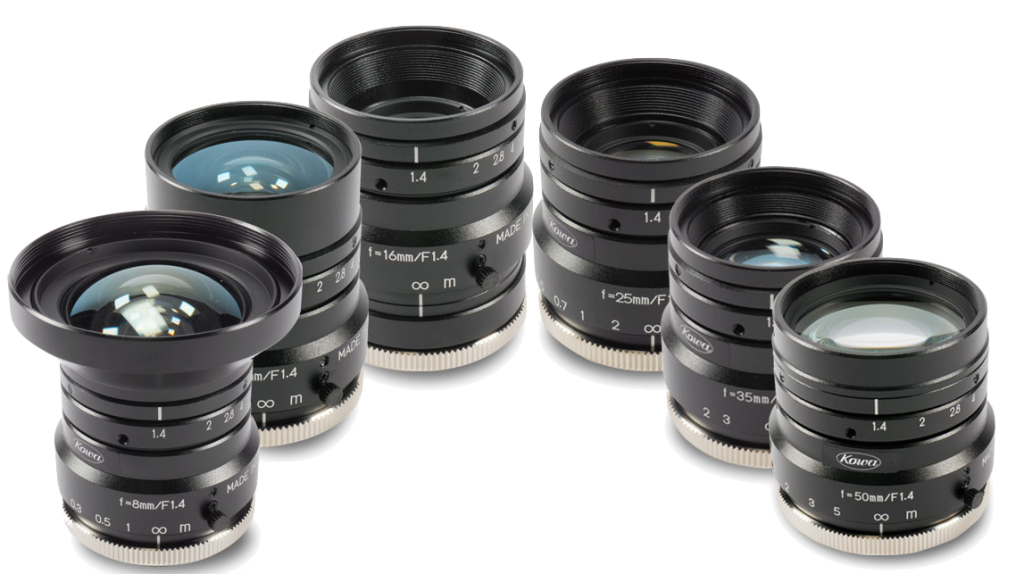

Recommended SWIR lenses
