Wavelength range
<410 - 2400 nm
Repetition rate
40 or 60 MHz (on request)
Seed pulse width
~6 ps
Total average power
up to 6 W
Power stability
+/- 1%
Spatial mode
Single mode
Total visible power
up to 1600 mW

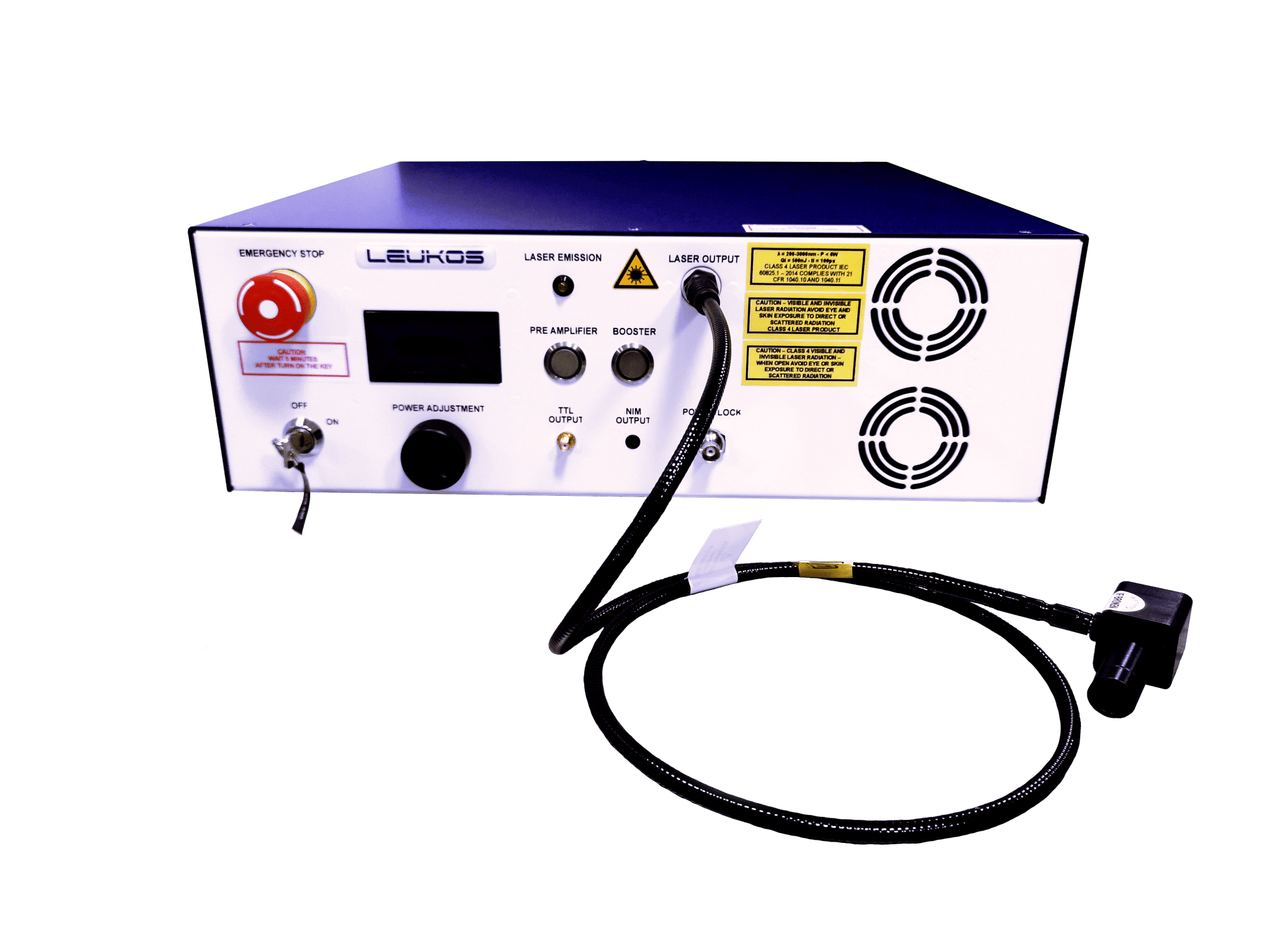

Based on high repetition rate mode-locked lasers, ROCK operates at tens of MHz repetition rate with short pulse durations on the order of picoseconds.
Ergonomic and functional, ROCK provides a high average power with stable broadband spectrum which can be easily combined with our filtering solutions to provide a convenient tunable laser. An optional pulse-picker can also be integrated in order to vary the nominal repetition rate of the laser.
Ergonomic and functional, ROCK provides a high average power with stable broadband spectrum which can be easily combined with our filtering solutions to provide a convenient tunable laser. An optional pulse-picker can also be integrated in order to vary the nominal repetition rate of the laser.
Based on high repetition rate mode-locked lasers, ROCK operates at tens of MHz repetition rate with short pulse durations on the order of picoseconds.
| 1 | Wavelength range: 340 nm – 2400 nm |
|---|---|
| 2 | Average power: 100 mW – 250 mW |
| 3 | Single mode TEM00 laser |
| 4 | Sub-nanosecond pulses |
| 5 | Turnkey compact benchtop laser |
Description
Specifications

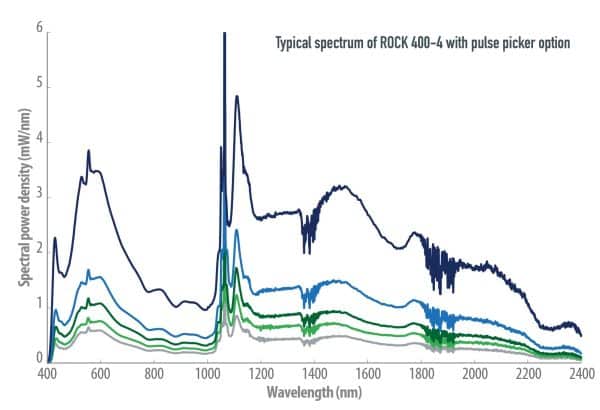

QE Curve
