NOXCAM | Cooled MWIR & LWIR radiometric cameras

NOXCAM | Cooled MWIR & LWIR radiometric cameras - Image 2

NOXCAM | Cooled MWIR & LWIR radiometric cameras

Spectral range

MWIR or LWIR

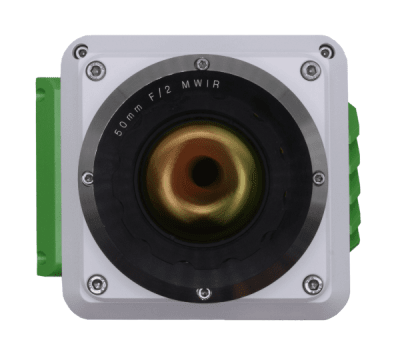

Fixed focal length

from 12 mm to 200 mm

Video output

HDMI 720p, SDI or Analog

Video Streaming

h.264 : RTSP or UDP & RAW: GigE Vision

Radiometric measurement

Optional

Software

Integrated web interface for control and acquisition

×

Description
Specifications

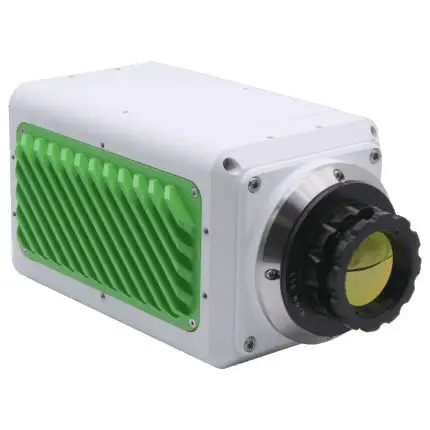

High Performance cooled MWIR & LWIR radiometric cameras

robust housing designed for harsh environments
accurate radiometric calibration (optional)
flexible optical interface
embedded real-time SSD recording
MWIR and LWIR cooled sensors
standard video interfaces (GigE Vision, CameraLink, HDMI)

Detector
	NOXCAM MW InSb	NOXCAM BBMW InSb	NOXCAM MW MCT	NOXCAM HD MW	NOXCAM LW	NOXCAM VLWIR
Spectral range	3.7 - 4.8 µm	1.5 - 5.5 µm	2.7 - 5.5 µm	3.7 - 4.8 µm	7.7 - 9.3 µm	7.7 - 11.5 µm
Resolution - Pixel pitch	640 x 512 px - 15 µm	640 x 512 px - 15 µm	640 x 512 px - 15 µm	1280 x 720 px - 10 µm	640 x 512 px - 15 µm	320 x 256 px - 30 µm
Optical aperture	F/3 (F/2 or F/4 on request)	F/2 (F/4 on request)	F/3	F/4	F/2	F/2
Cooling	Rotary Stirling	Rotary Stirling	Rotary Stirling	Rotary Stirling	Rotary Stirling	Rotary Stirling

Video outputs
HDMI (SDI optional)	HDMI720p output with color overlay including: camera status, measurement statistics, color palette, temperature spot measurement data in real time
GigE Ethernet	h.264: real-time streaming with extra low latency
GigE Vision	fast and secure 14bit data streaming using industry standard protocol
CameraLink	Optional - allows full frame rate
Embedded Recording System	Embedded SSD slot for real time recording - removable SSD drive

Control
sFTP	secure control of camera resources and files
TCP / IP	to send the commands to the camera
HTTP	to access the camera's internal control software, accessible from a simple web browser

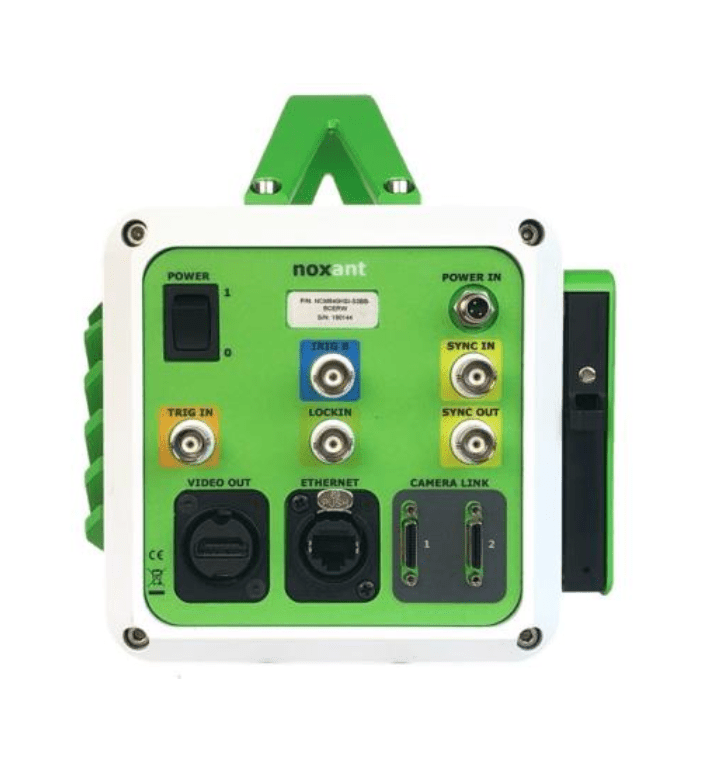

I/O Sync
External	trigger input (TRIG IN)
SYNC IN/OUT	for detector synchronization (start/stop of integration)
LOCKIN input	for non-destructive testing / active thermography
IRIG-B	datation

Optional: Radiometry
Temperature calibration range	+5ºC to +150ºC typ. (other range upon request)
Motorized filter wheel	optional, up to 4 filters

Physical and environmental specs
Power consumption	<20W in steady operation
Operating Temperature Range	-10°C to +50°C
Storage Temperature Range	-20°C to +60°C
Dimensions w/o lens	220x155x130mm
Weight w/o lens	4.5 kg

Additional information

text1	Cooled MWIR & LWIR
text2	Various resolutions
text3	Various lens options
text4	Optional radiometry
text5	Real-time recordings with embedded SSD
text6	Embedded software with real-time analysis
