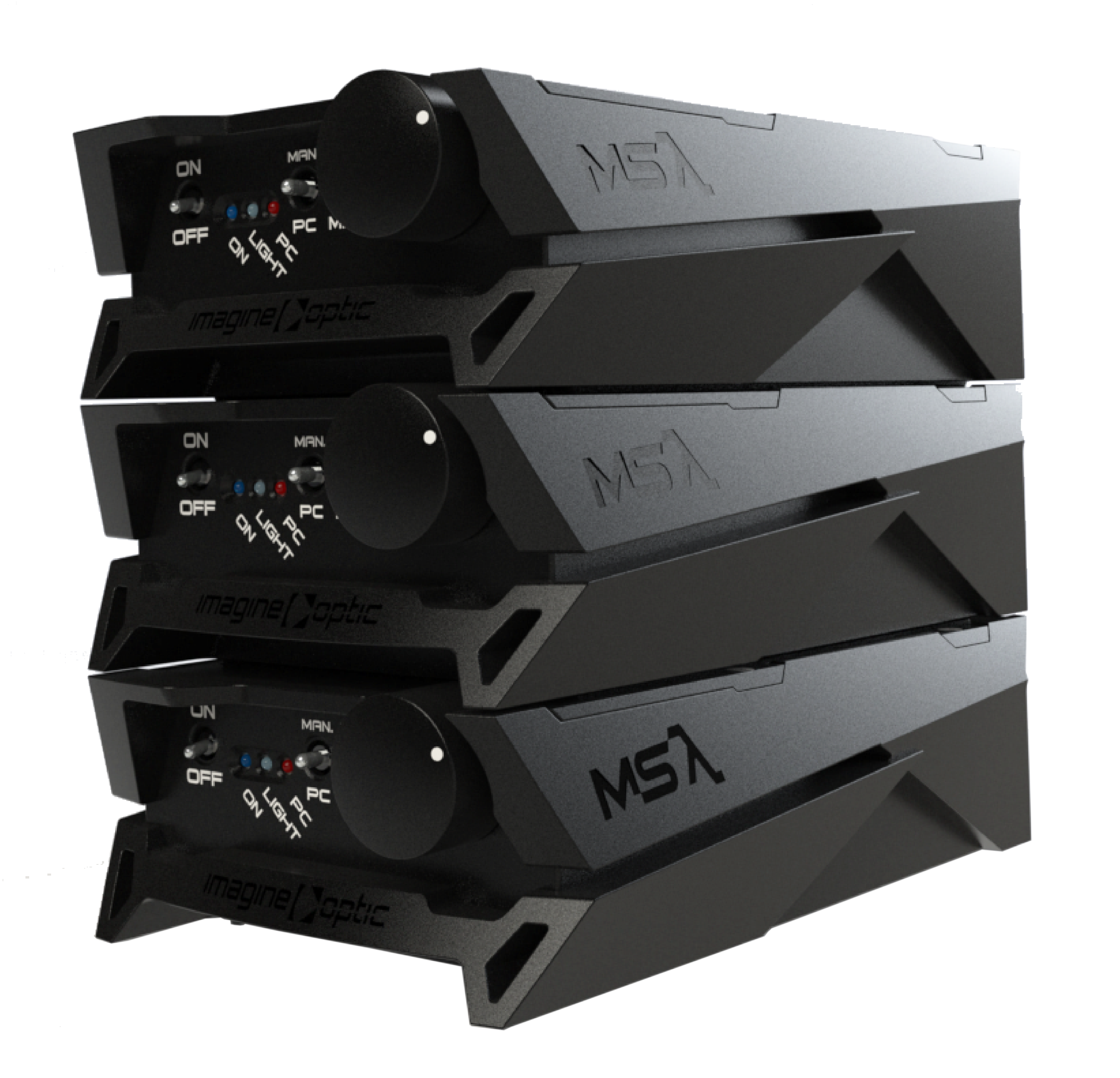

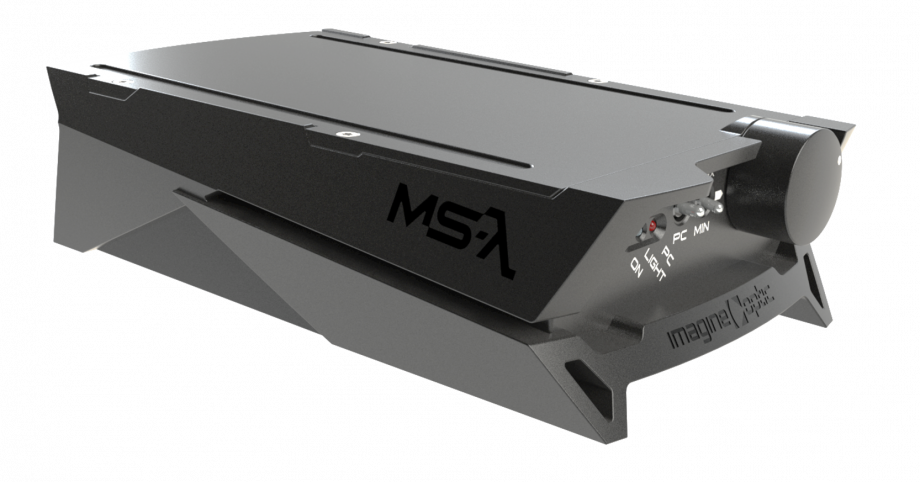

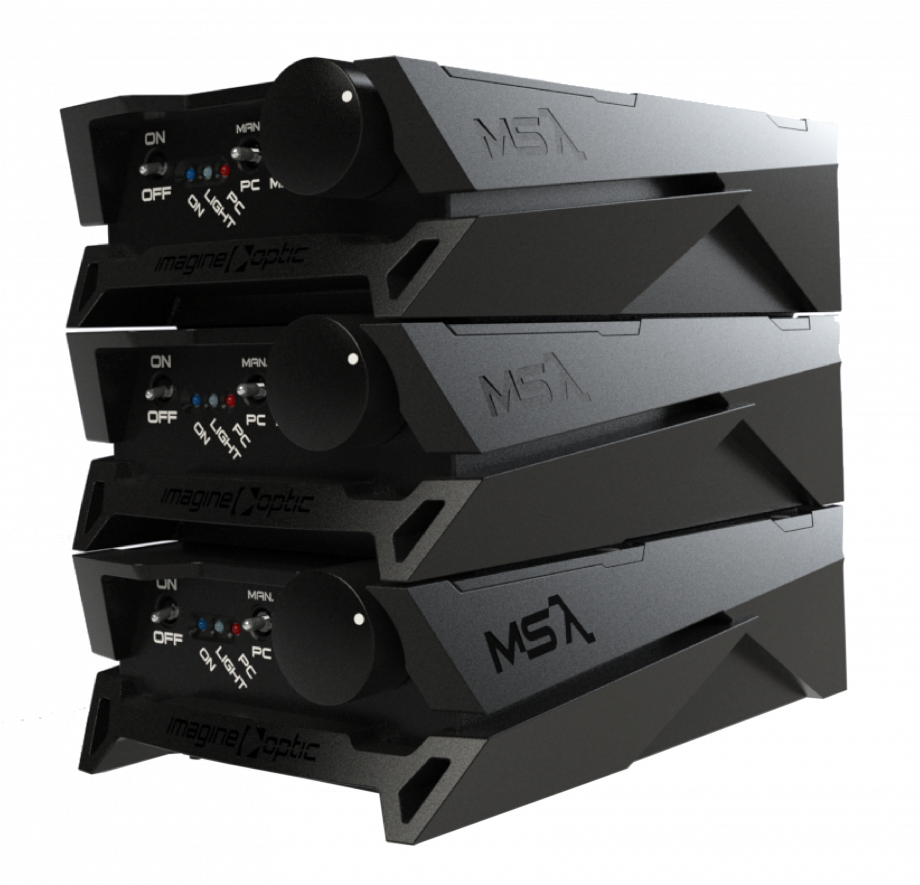

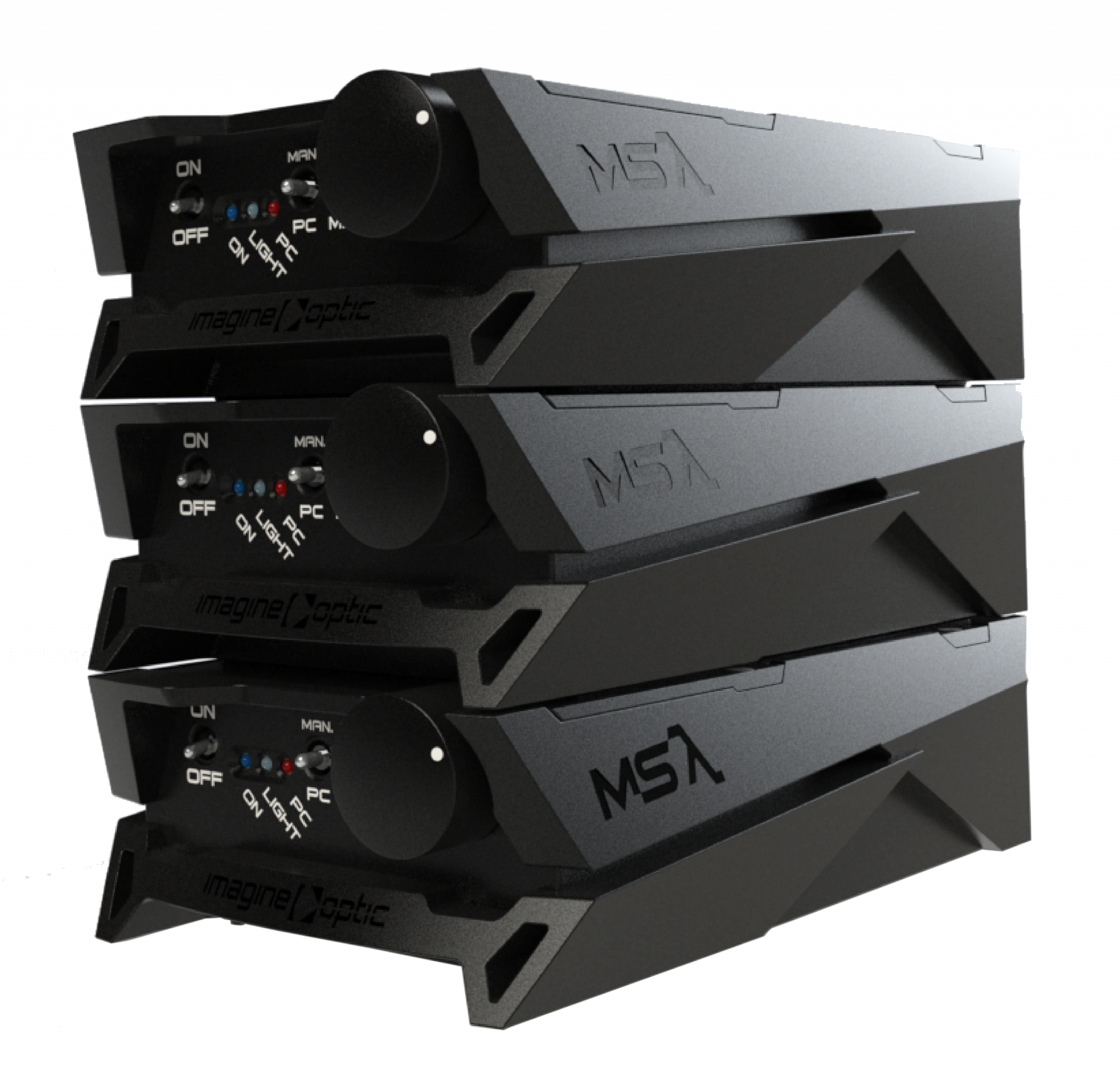

MS-LAMBDA | Metrology Light Source

Available wavelengths (Laser sources)

405, 488, 520, 635, 785, 830, 1064, 1550 nm

Available wavelengths (low coherence sources)

405, 450, 510, 635, 650, 790, 850, 1050, 1550 nm

Output Power

Class 3R laser (< 5 mW at most wavelengths)

Output

Monomode fiber, 2 m patchcord, FC/APC connector

Dimensions (HxWxL)

60 x 133 x 213 mm3

Weight

0.4 kg

Metrology Light Source

The MS-LAMBDA is a metrology light source designed for wavefront sensing applications. It generates a spherical wavefront, ensuring an optimal illumination path at any desired wavelength.

The MS-LAMBDA is designed to be used with the RFLEX and OEC metrology systems from Imagine Optic.

Ideal Applications

  • Optical Tabletop Setups
  • Integration into Automated Machines
  • Wavefront Sensing at Specific Wavelengths
  • Reference Arms for Adaptive Optics

Features of the MS-LAMBDA

  • Laser or Low-Coherence Source (SLED): Suitable for various optical applications.
  • High-Quality Wavefront Output: Delivers perfectly focused or collimated beams through single-mode fiber.
  • Control Options: Operable via manual control or computer remote control.
  • Adjustable Intensity Output: Allows precise control of beam intensity.
  • Output Modes: Supports constant current or constant power operation.
  • Optional Temperature Stabilization: Equipped with TEC (Thermo-Electric Cooling) for enhanced stability.
  • Trigger Synchronization: Ensures precise timing and integration.
  • Class 3R Laser: Safe for controlled environments under proper usage guidelines.

Metrology Light Source

The MS-LAMBDA is a metrology light source designed for wavefront sensing applications. It generates a spherical wavefront, ensuring an optimal illumination path at any desired wavelength.

The MS-LAMBDA is designed to be used with the RFLEX and OEC metrology systems from Imagine Optic.

Ideal Applications

  • Optical Tabletop Setups
  • Integration into Automated Machines
  • Wavefront Sensing at Specific Wavelengths
  • Reference Arms for Adaptive Optics

Features of the MS-LAMBDA

  • Laser or Low-Coherence Source (SLED): Suitable for various optical applications.
  • High-Quality Wavefront Output: Delivers perfectly focused or collimated beams through single-mode fiber.
  • Control Options: Operable via manual control or computer remote control.
  • Adjustable Intensity Output: Allows precise control of beam intensity.
  • Output Modes: Supports constant current or constant power operation.
  • Optional Temperature Stabilization: Equipped with TEC (Thermo-Electric Cooling) for enhanced stability.
  • Trigger Synchronization: Ensures precise timing and integration.
  • Class 3R Laser: Safe for controlled environments under proper usage guidelines.

Applications of the MS-LAMBDA:

The MS-LAMBDA is a compact electronic driver designed to operate laser diodes or SLEDs at any wavelength required for your optical setup. Its single-mode fiber output produces a spherical wavefront, simplifying the creation of high-quality illumination paths for optical engineers.

This device is ideal for:

  • Optical tabletop configurations
  • Integration into automated systems
  • Wavefront sensing at specific wavelengths
  • Reference arms in adaptive optics systems

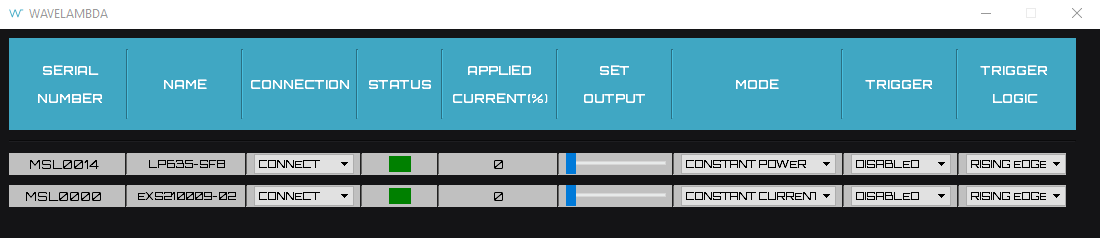

WAVELAMBDA™ Metrology Source Software

  • Dedicated Interface: WAVELAMBDA™ is the specialized software for remote control of MS-LAMBDA.
  • Source Selection: Allows you to choose the source to manage directly from your computer.
  • Parameter Configuration: Enables precise adjustment and control of source parameters.

MS-LAMBDA Datasheet
