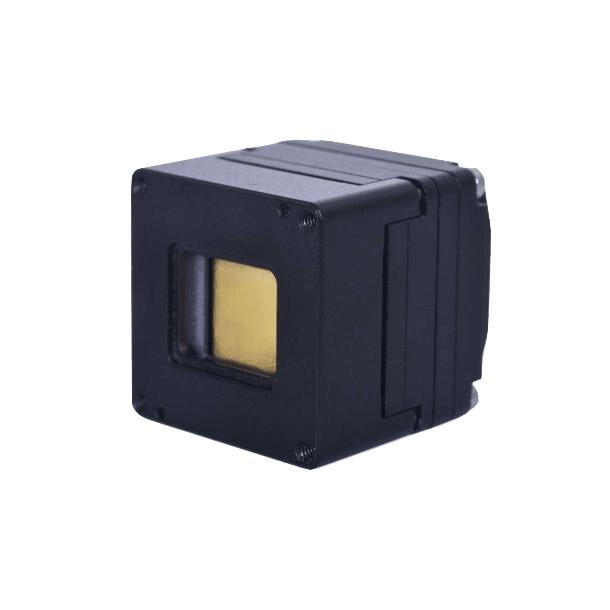

MicroCube640™ | Extreme Low SWaP Thermal Camera Module

Spectral range - Material

8 - 14 µm - VOx uncooled microbolometer

Frame rate full frame

60 Hz

Resolution - Pixel Pitch

640 x 480 px - 12 µm

Dimensions - Weight

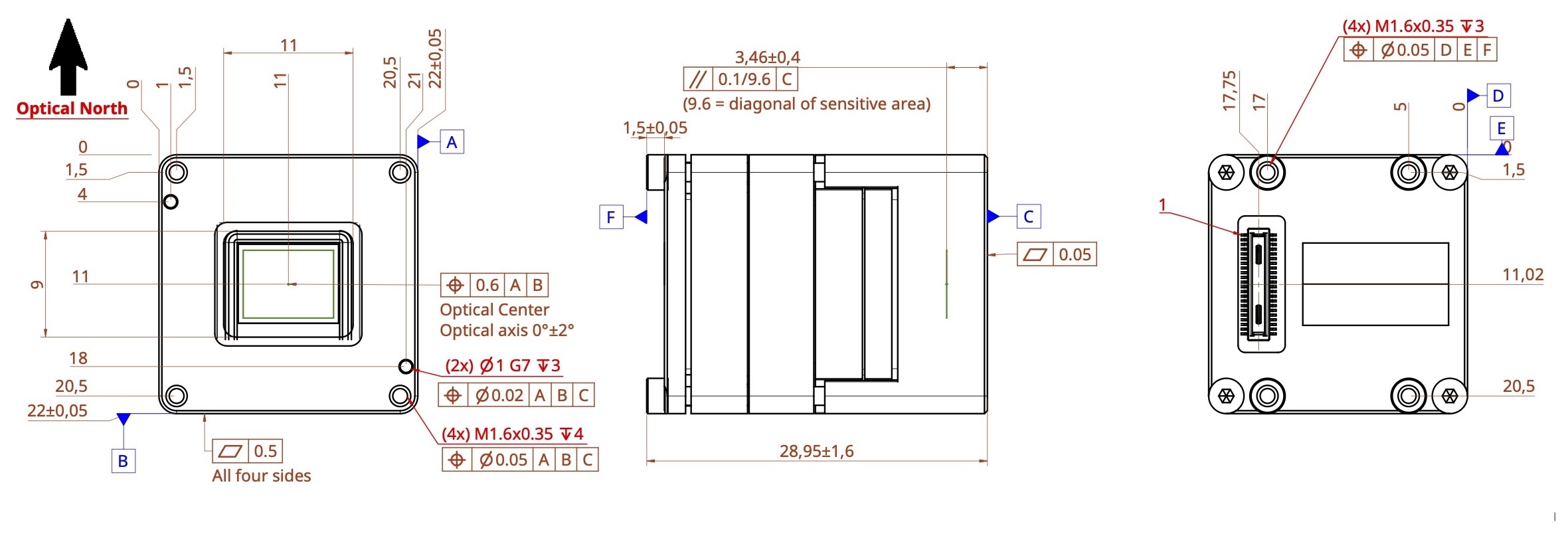

22 x 22 mm2 (X,Y) - 22 g (w/o lens)

Interface

UVC, MIPI-CSI 2, DF40

Image Processing / Calibration

Embedded

Extreme low SWaP Thermal Camera Module

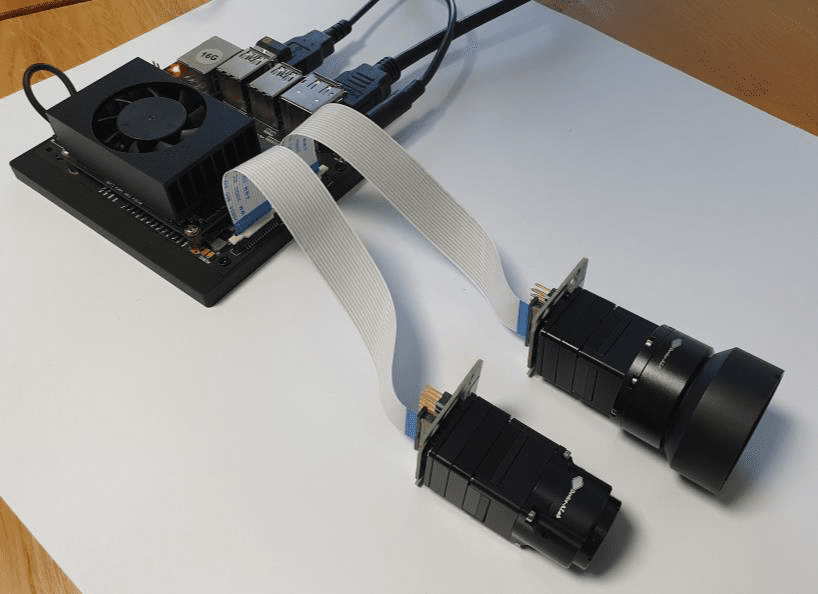

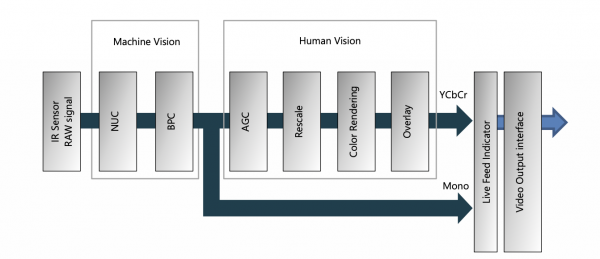

The MicroCube640™ VGA  thermal camera module boasts a resolution of 640 x 480 pixels with a 12 µm pitch. The high-definition sensor consists of an uncooled microbolometer array developed by Lynred. With its extreme low profile of only 22 x 22 mm2 (x,y), weight 22g and power consumption under 1.5W, this small thermal camera is designed for easy integration into sub-systems. Available with UVC, MIPI and DF40 interfaces, the MicroCube is the perfect plug-and-play solution for embedded systems. The camera outputs ready-to-use images thanks to its onboard image processing pipeline as described below:

The MicroCube640™ comes with a shutterless function and a ‘time to image’ under 3 seconds from power up. The 12 µm pixel size of this small thermal camera module offers unmatched image quality with an NETD < 40mK.

The MicroCube640™ is a dual-use (non-ITAR) thermal camera module with a frame rate up to 60 Hz.

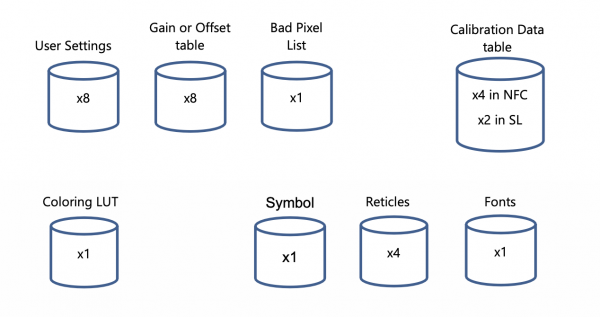

Onboard Storage

Applications

  • Use in UAVs (Unmanned aerial Vehicles)
  • Use in UGVs (Unmanned Ground Vehicles)
  • Surveillance, security and maritime cameras
  • Night-vision goggles
  • Automotive and aircraft safety vision
  • Machine vision inspection
  • Medical images
  • and much more…

See our other LWIR thermal cores here.

Extreme low SWaP Thermal Camera Module

The MicroCube640 VGA  thermal camera module boasts a resolution of 640 x 480 pixels with a 12 µm pitch. The high-definition sensor consists of an uncooled microbolometer array developed by Lynred. With its extreme low profile of only 22 x 22 mm2 (x,y), weight 22g and power consumption under 1.5W, this small thermal camera is designed for easy integration into sub-systems. Available with UVC, MIPI and DF40 interfaces, the MicroCube is the perfect plug-and-play solution for embedded systems. The camera outputs ready-to-use images thanks to its onboard image processing pipeline as described below:

The MicroCube640 comes with a shutterless function and a ‘time to image’ under 3 seconds from power up. The 12 µm pixel size of this small thermal camera module offers unmatched image quality with an NETD < 40mK.

The MicroCube640 is a dual-use (non-ITAR) thermal camera module with a frame rate up to 60 Hz.

Onboard Storage

Applications

  • Use in UAVs (Unmanned aerial Vehicles)
  • Use in UGVs (Unmanned Ground Vehicles)
  • Surveillance, security and maritime cameras
  • Night-vision goggles
  • Automotive and aircraft safety vision
  • Machine vision inspection
  • Medical images
  • and much more…

See our other LWIR thermal cores here.

MicroCube640™ Small Thermal Camera Applications:

  • UAVs, UGVs and Robotics
  • Handheld Thermal Imaging
  • Surveillance, Security and Maritime Cameras
  • Night Vision Goggles
  • Automotive and Aircraft Safety Vision=
  • Machine Vision Inspection
  • Medical Imaging

Free IrLugX Viewer (GUI)

  • Calibration wizard (up to 8 maps: gain and/or offset tables)
  • Easy and fast Import/Export of gain, offset & data to Matlab; ImageJ, Excel, …
  • BPR (Bad Pixel Replacement); NUC (Non Uniformity Correction); AGC (Automatic Gain Correction) management can be done in a few clicks.

Free SDK compatible with

  • Windows x86 / 64 bits PC
  • Linux x86 / 64bits (including Ubuntu 18.04)
  • ARMv7 (32bits) et ARMv8 (64bits)

See our other LWIR thermal cores offered by Axiom Optics here.



Resolution

640 x 480
Pixel Pitch

12 µm x 12 µm
Detector Type

Uncooled Microbolometer
Frame Rate Full Frame

60 Hz full frame
Interface

MIPI CSI-2, DF40, UVC
Text

Shutterless operation
Text 2

Embedded Image processing
