Lambda Mini | Miniaturized Laser Module

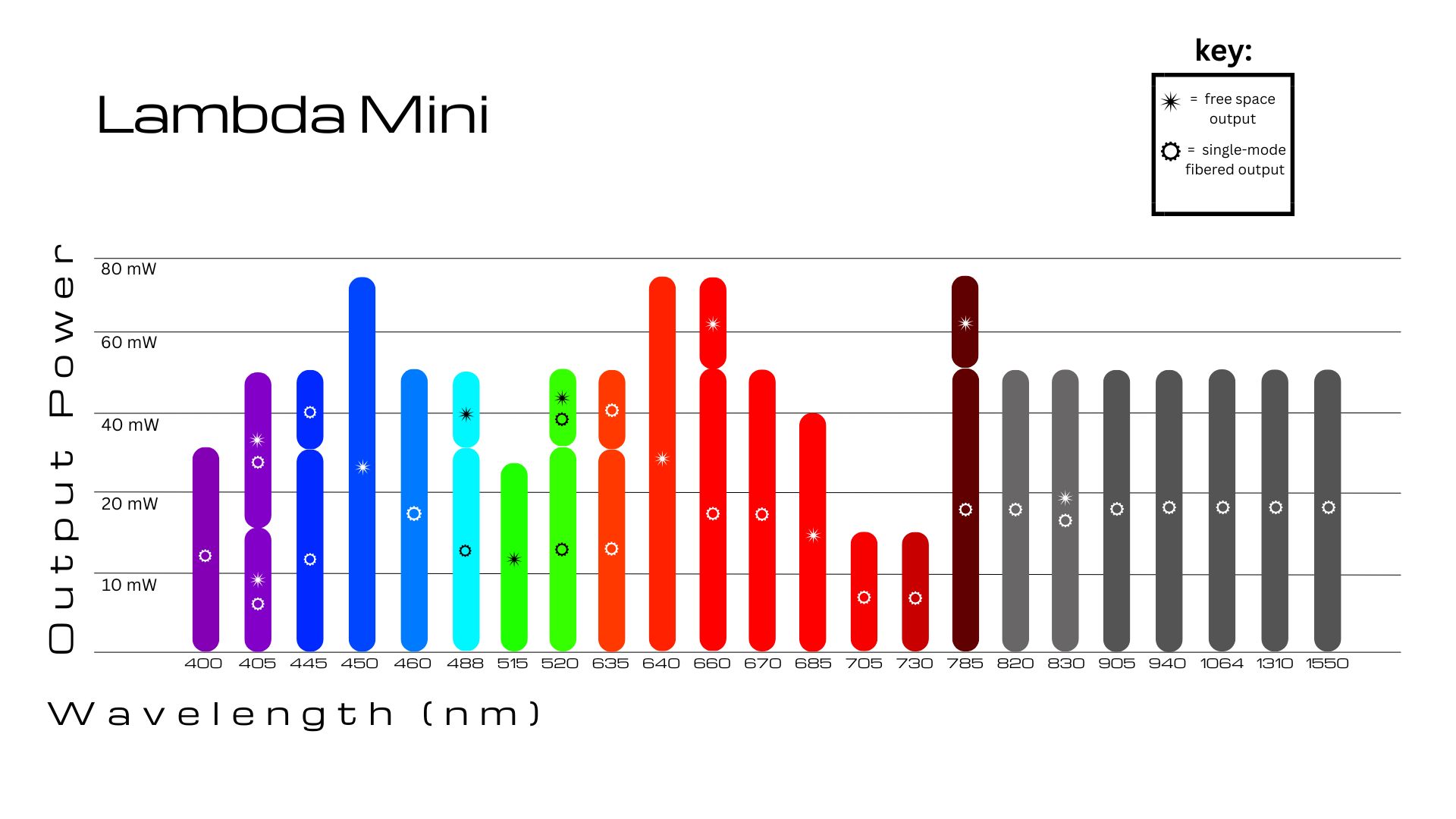

Available Wavelengths

400nm - 1550nm

Output Power

Up to 75mW

Output

Collimated beam of fiber output

Power Stability

<2% (10h)

Polarization

Linear

Power Source

USB

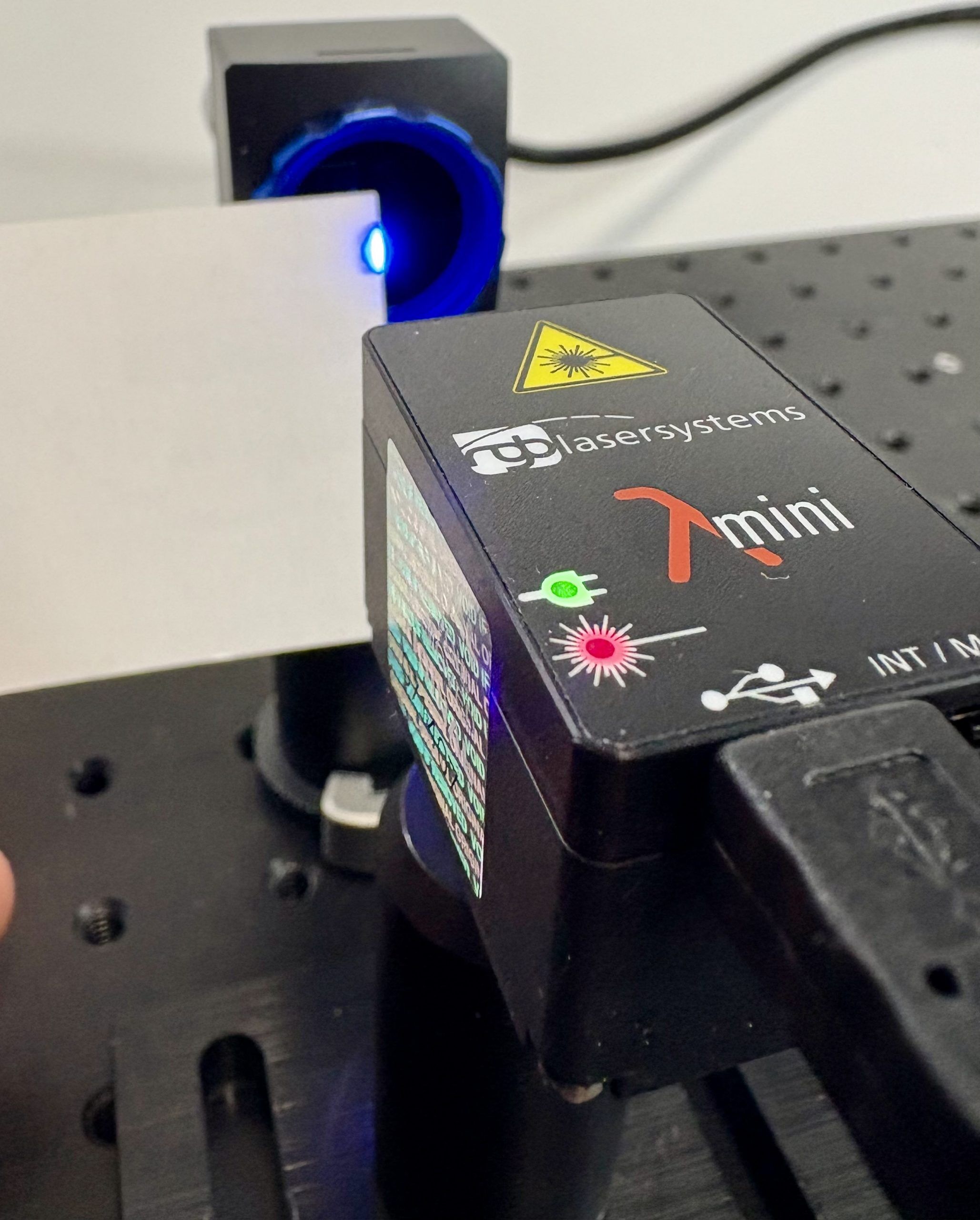

Lambda Mini CW Laser: The World’s Smallest Fully Featured Laser Module

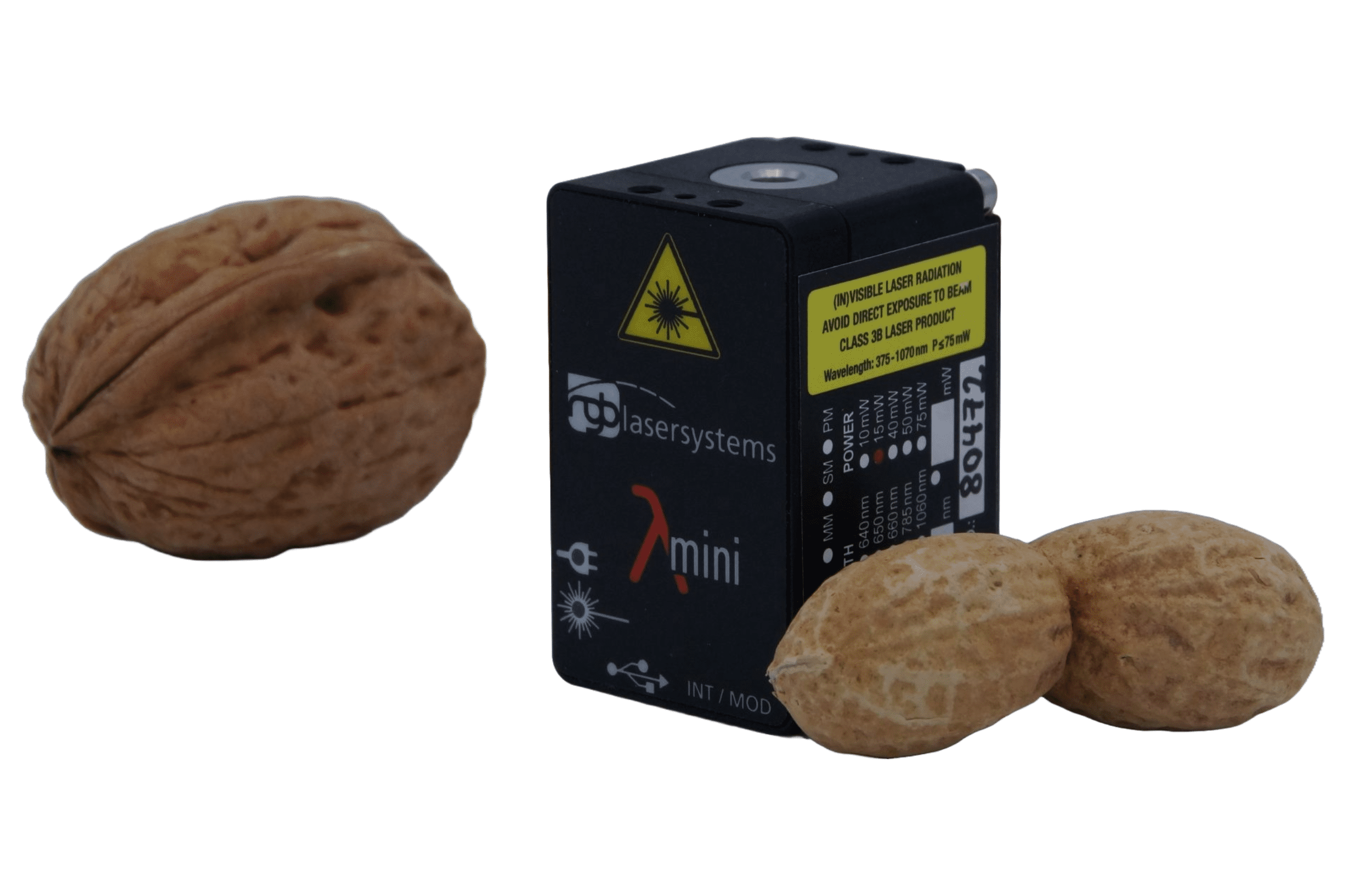

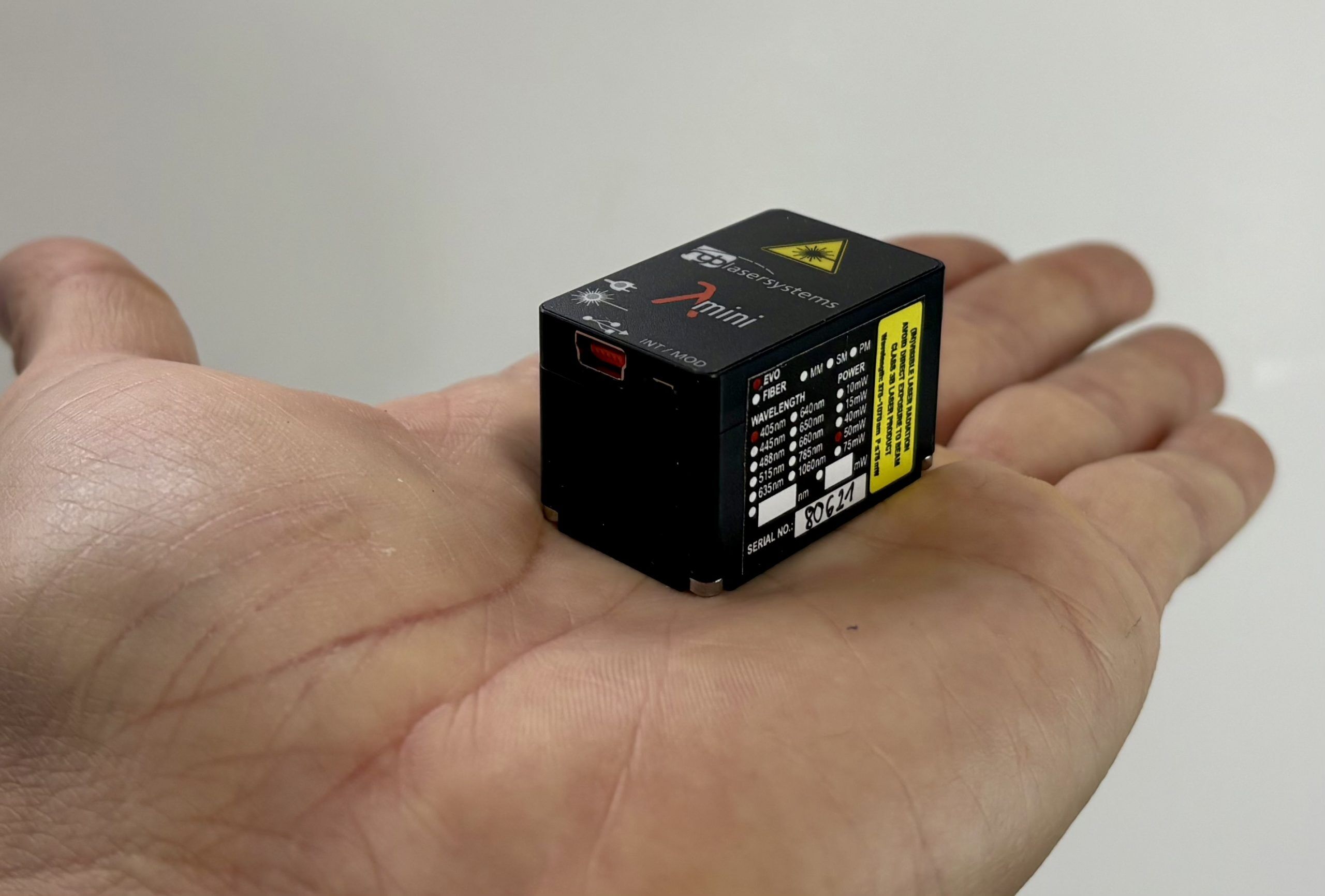

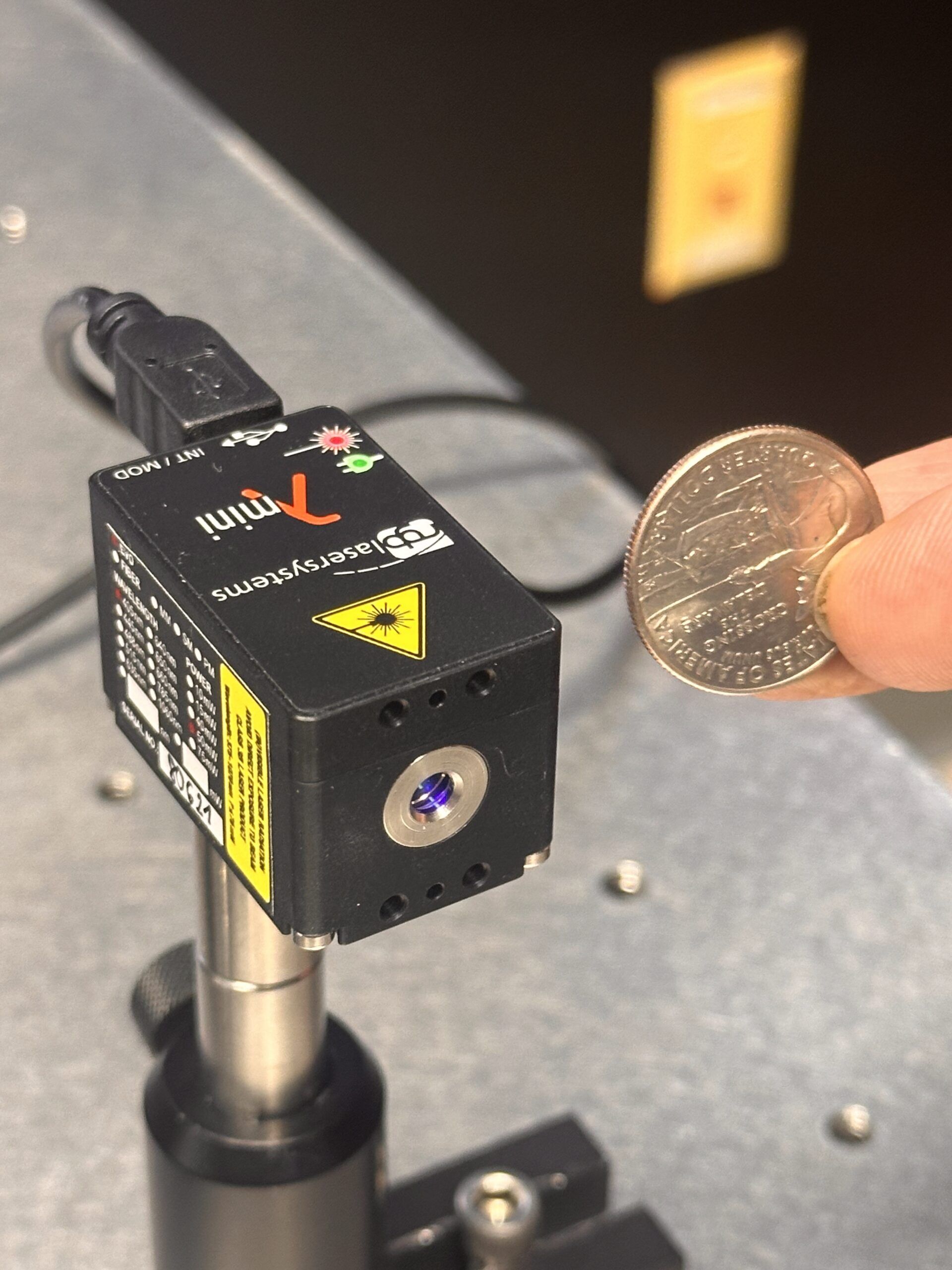

The Lambda Mini laser module is the world‘s smallest complete laser module in an amazingly small design. A super-compact version of the fully featured Lambda Beam CW laser module. The Lambda Mini includes not only the laser diode and precision collimating optics, but also the laser controller and power supply via USB. All you need for operating and controlling the laser is a simple USB cable connected to your computer. Its compact size makes the Lambda Mini a perfect choice as a precision light source for space-limited applications.

Lambda Mini Laser module fiber coupled

Key Features

  • Incredibly small yet fully featured
  • Output powers up to 75 mW
  • Powered via USB: NO extra power adapter required
  • Control software included (see Software Tab). Custom user software via serial communication is possible.
  • Temperature monitoring
  • Excellent value for money

Choose From A Free Collimated Module Or Fiber Coupled Module

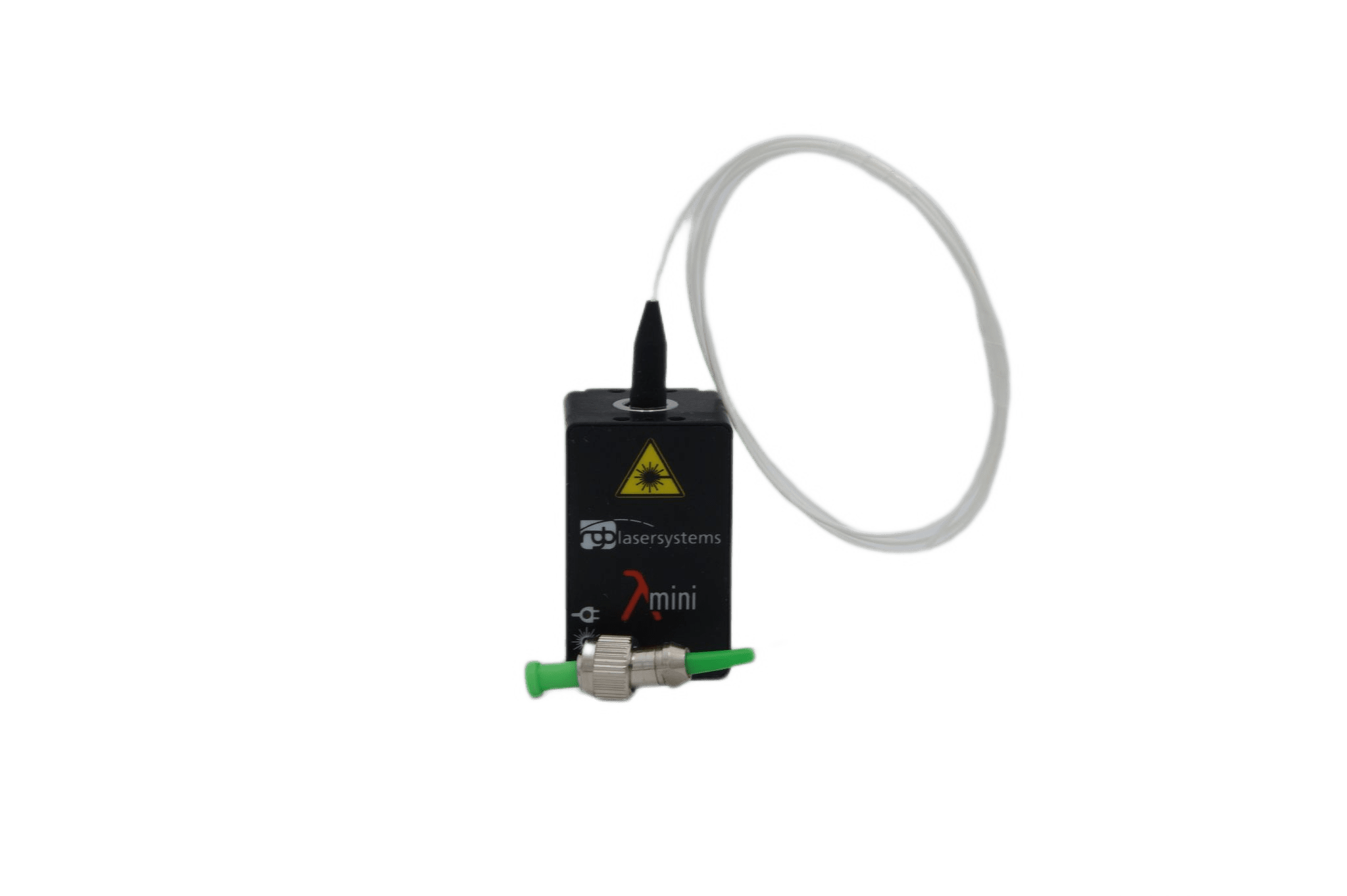

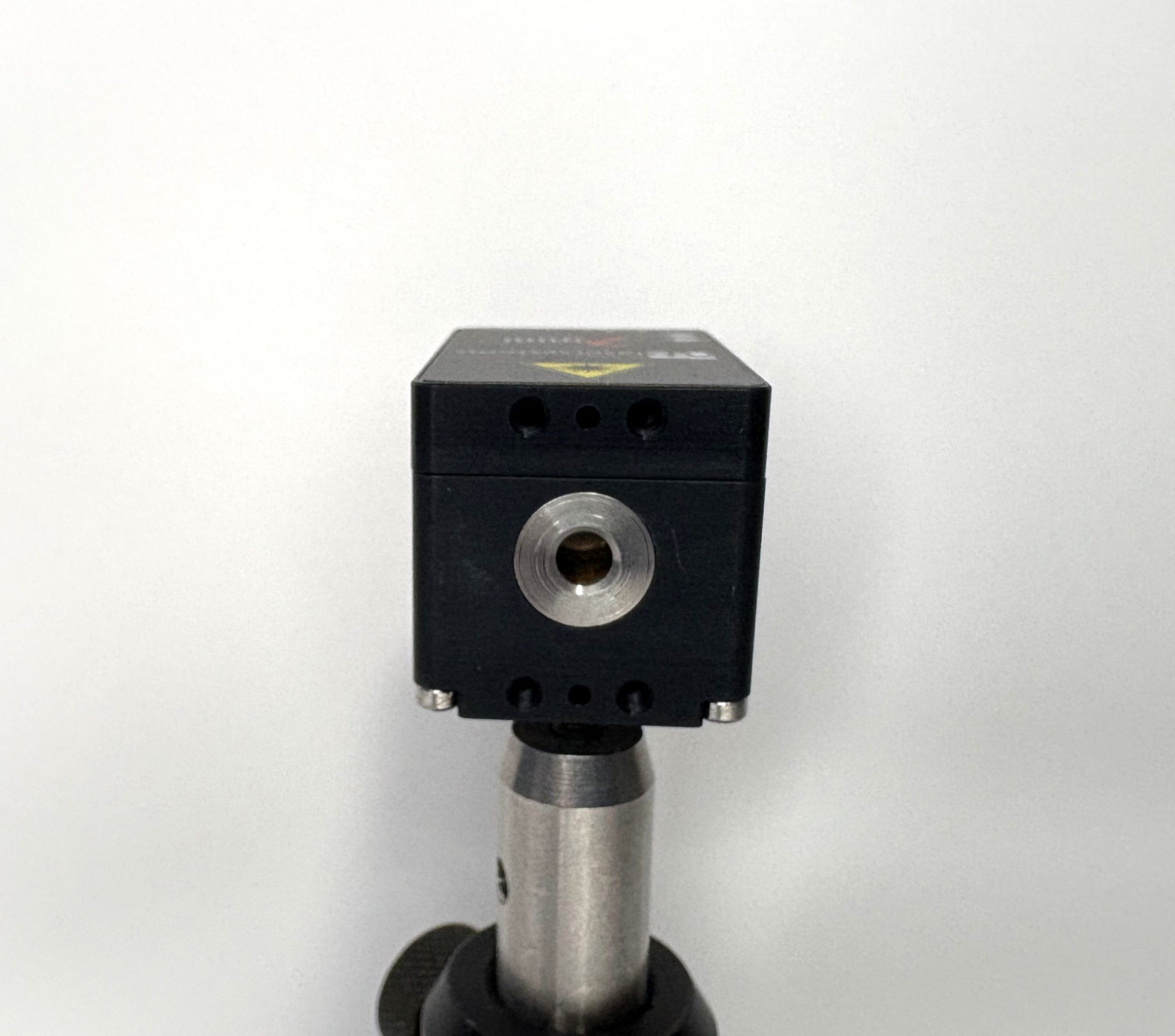

The Lambda Mini module is available in two versions: The Lambda Mini Evo emits a free collimated TEM00 laser beam. The Lambda Mini Fiber couples the beam into an optical fiber. The Lambda Mini Fiber includes an 80cm single mode optical fiber with an FC-PC or FC-APC connector. The fiber is factory-aligned and permanently attached. Polarization-maintaining or multi-mode fibers are optionally available.

Lambda Mini CW Laser: The World’s Smallest Fully Featured Laser Module

The Lambda Mini laser module is the world‘s smallest complete laser module in an amazingly small design. A super-compact version of the fully featured Lambda Beam CW laser module. The Lambda Mini includes not only the laser diode and precision collimating optics, but also the laser controller and power supply via USB. All you need for operating and controlling the laser is a simple USB cable connected to your computer. Its compact size makes the Lambda Mini a perfect choice as a precision light source for space-limited applications.

Lambda Mini Laser module fiber coupled

Key Features

  • Incredibly small yet fully featured
  • Output powers up to 75 mW
  • Powered via USB: NO extra power adapter required
  • Control software included (see Software Tab). Custom user software via serial communication is possible.
  • Temperature monitoring
  • Excellent value for money

Choose From A Free Collimated Module Or Fiber Coupled Module

The Lambda Mini laser module is available in two versions: The Lambda Mini Evo emits a free collimated TEM00 laser beam. The Lambda Mini Fiber couples the beam into an optical fiber. The Lambda Mini Fiber includes an 80cm single mode optical fiber with an FC-PC or FC-APC connector. The fiber is factory-aligned and permanently attached. Polarization-maintaining or multi-mode fibers are optionally available.

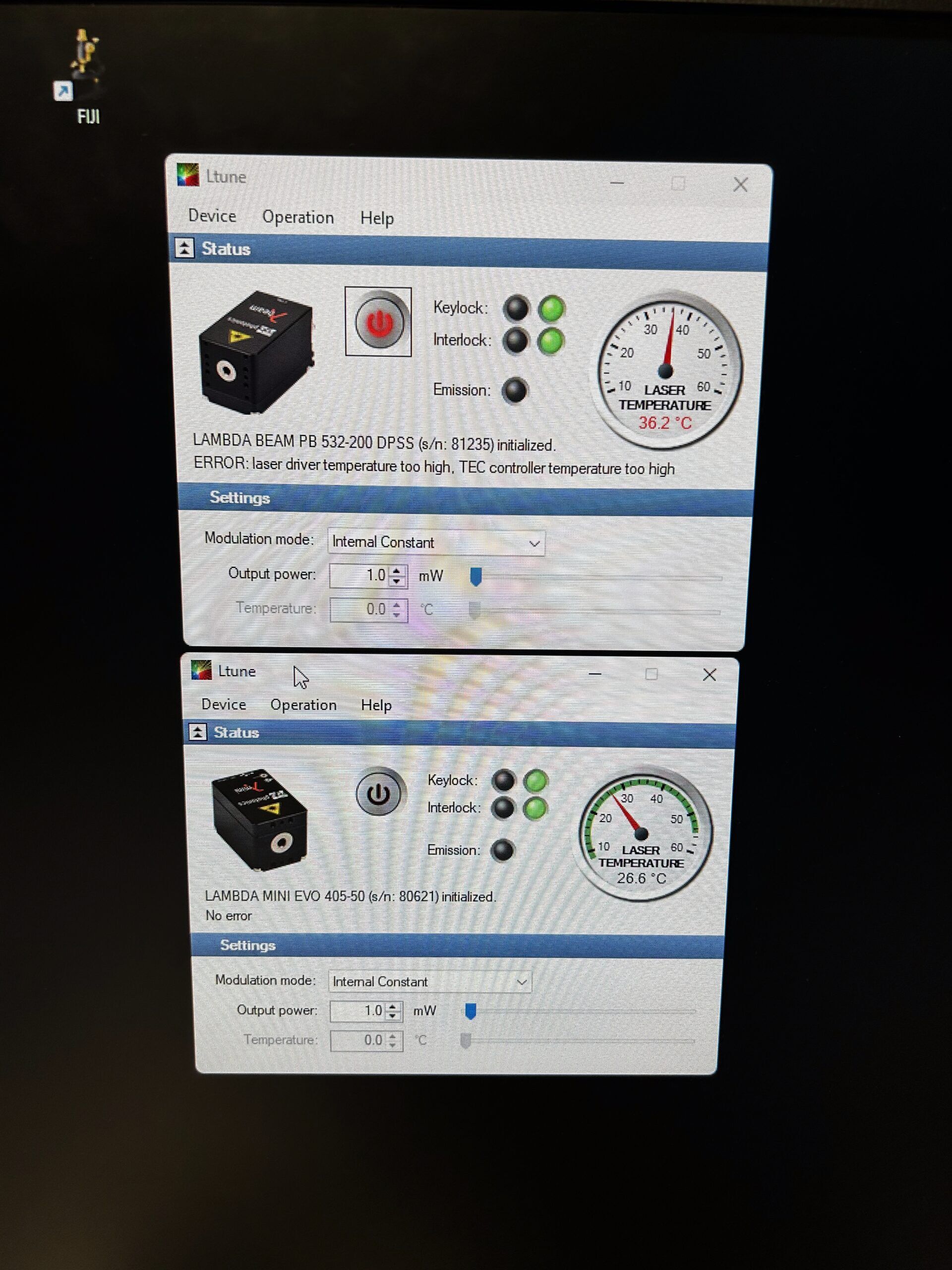

Ltune Laser Module Control Software

The Lambda Beam Mini uses a USB interface for remote control. The laser can be controlled either via the Ltune Windows application (included) or with the user’s custom software via serial communication.

The Ltune software for Windows can be used to configure and control the laser. The software features:
• Modulation mode selection
• Output power adjustment
• Display of the laser status, configuration and operating hours
• Temperature display and adjustment

LTune Software

Lambda Mini Laser Module Data Sheet

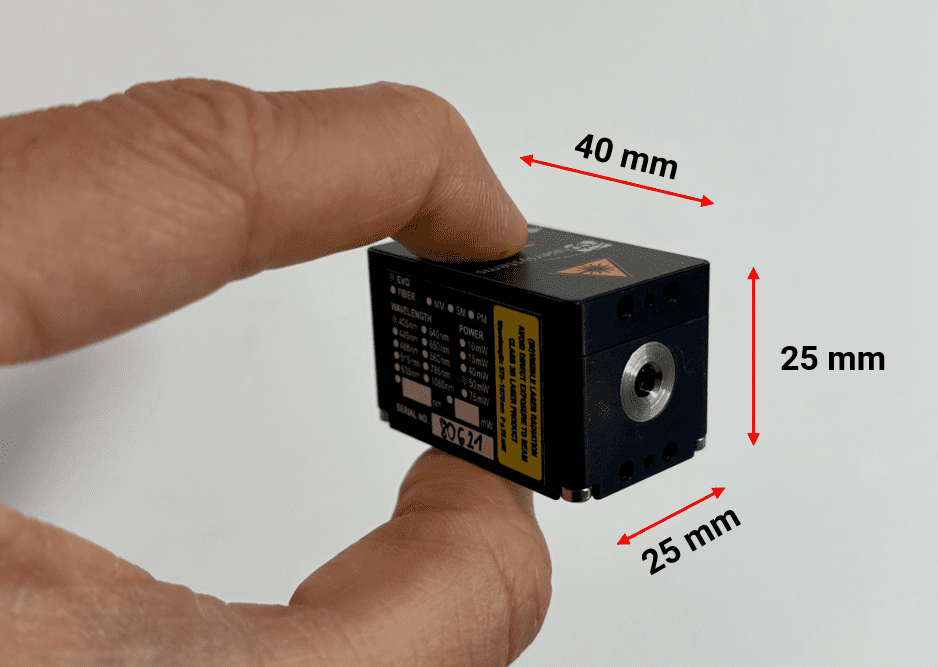

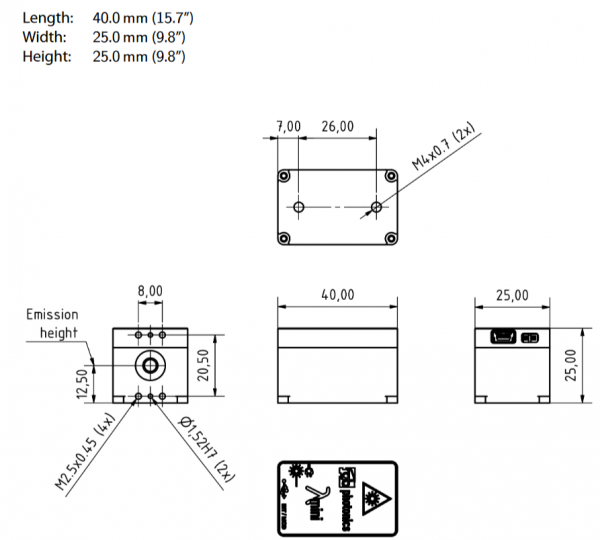

Lambda Mini technical drawing

1

Wavelengths: 400nm-1550nm
2

Output power: Up to 75mW
3

Output: Collimated beam or fibered
4

Polarization: Linear
5

Power Source: USB
