GE-VAC | In-Vacuum CCD Camera

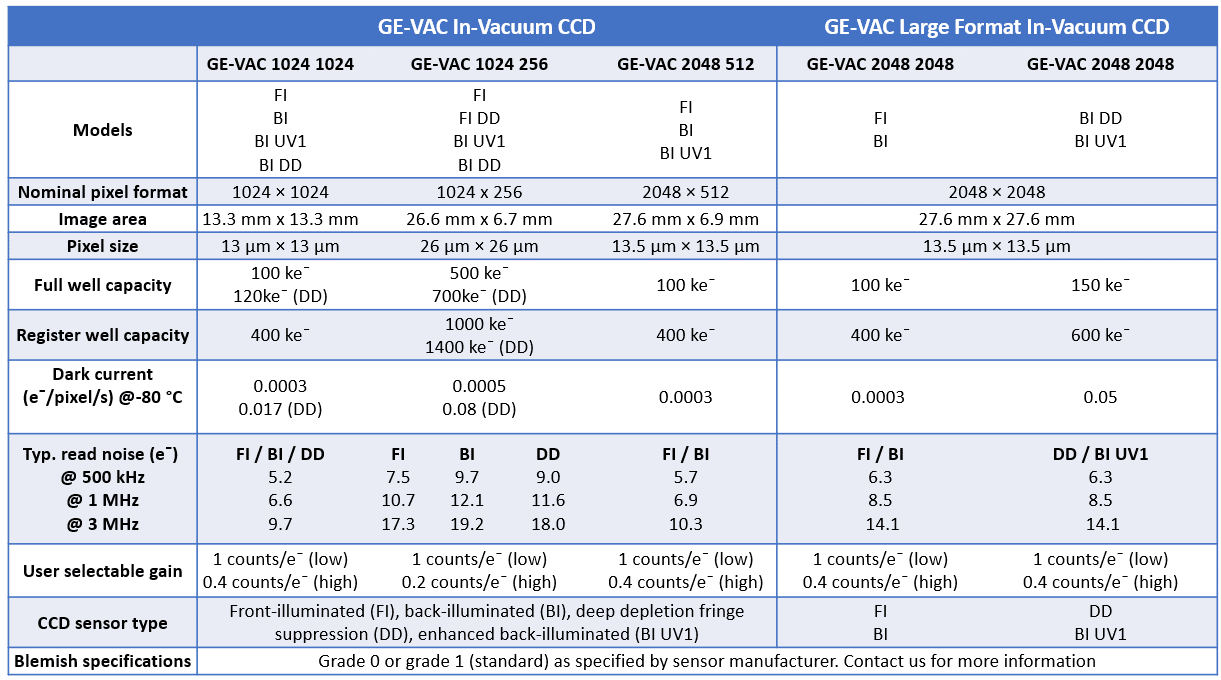

Photon Energy Range

5 eV - 20 keV

Resolution

1024 x 256 - 2048 x 2048

Pixel pitch

13 µm x 13 µm - 26 µm x 26 µm

Sensor mode / Frame rate

Global shutter / 0.7 - 11 fps

Readout noise

5.2 - 9.7 e- rms

Camera Dimensions

6.2 cm (2.44″) x 10.0 cm (3.94″) x 13.2 cm (5.20″)

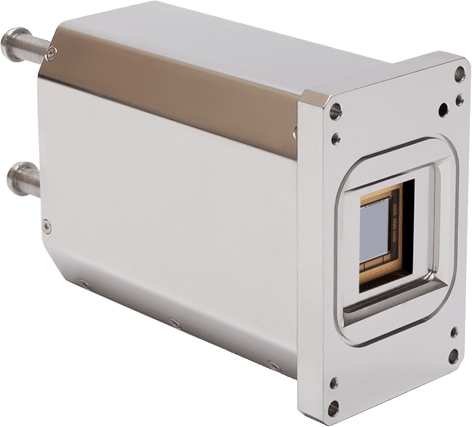

GreatEyes GE-VAC Scientific In-Vacuum CCD Camera

Based on a unique platform concept, greateyes offers a portfolio of scientific in-vacuum CCD cameras for imaging and spectroscopy in the VUV, EUV, soft and hard X-ray range. They are fabricated in stainless steel or aluminium providing excellent vacuum compatibility. A single additional flange integrates electrical and water cooling feedthroughs. Incoming photons are directly detected by the CCD sensor. No external controller is required to operate the detectors.

All greateyes in-vacuum CCD cameras combine scientific CCD sensors with ultra-low noise electronics for optimal detection of weak signals. Select among different spectral sensitivities and sensor technologies to find the best solution for your imaging or spectroscopic application. Deep cooling of the sensor is achieved by means of multi-stage thermoelectric Peltier elements. The scientific in-vacuum CCD cameras are equipped with a rich set of functionalities including flexible binning operation, various trigger and synchronisation modes, software adjustable gain settings as well as temperature monitoring of the CCD sensor and heat dissipation system.

For another greateyes camera that is vacuum compatible but not in-vacuum, check out the ALEX-i for imaging or the ALEX-s for spectroscopy

greateyes Vision software

The greateyes Vision software suite provides access to all camera functionalities. It includes comprehensive visualization, analysis and storage options and supports important features such as wavelength and geometric calibration, crop and burst modes and various file formats. The software runs on 32/64-bit Windows systems. For integration into other systems, a software development kit and drivers are available.

Features

  • Supports crop and burst readout modes for higher frame rates and precise time resolution
  • Supports flexible horizontal and vertical binning
  • Wavelength and geometric calibration
  • Various file formats: JPG, BMP, TXT, TIFF (16-bit), DAT raw data
  • Language support in English and German
  • Comprehensive visualization and image manipulation routines
  • Runs on 32/64-bit Windows systems

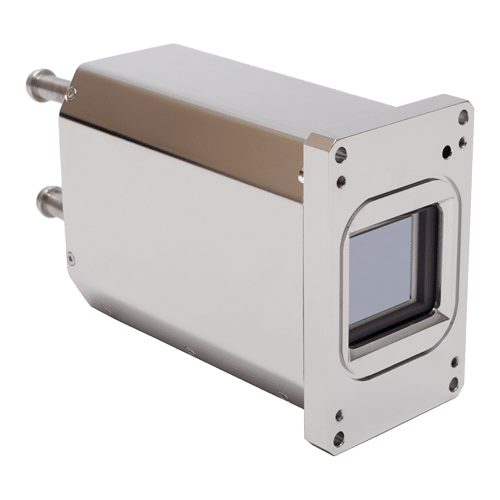

GreatEyes GE-VAC Scientific In-Vacuum CCD Camera

Based on a unique platform concept, greateyes offers a portfolio of scientific in-vacuum CCD cameras for imaging and spectroscopy in the VUV, EUV, soft and hard X-ray range. They are fabricated in stainless steel or aluminium providing excellent vacuum compatibility. A single additional flange integrates electrical and water cooling feedthroughs. Incoming photons are directly detected by the CCD sensor. No external controller is required to operate the detectors.

All greateyes in-vacuum CCD cameras combine scientific CCD sensors with ultra-low noise electronics for optimal detection of weak signals. Select among different spectral sensitivities and sensor technologies to find the best solution for your imaging or spectroscopic application. Deep cooling of the sensor is achieved by means of multi-stage thermoelectric Peltier elements. The scientific in-vacuum CCD cameras are equipped with a rich set of functionalities including flexible binning operation, various trigger and synchronisation modes, software adjustable gain settings as well as temperature monitoring of the CCD sensor and heat dissipation system.

Vision software

The greateyes Vision software suite provides access to all camera functionalities. It includes comprehensive visualization, analysis and storage options and supports important features such as wavelength and geometric calibration, crop and burst modes and various file formats. The software runs on 32/64-bit Windows systems. For integration into other systems, a software development kit and drivers are available.

Features of the GE-VAC in-vacuum spectroscopy camera

  • Supports crop and burst readout modes for higher frame rates and precise time resolution
  • Supports flexible horizontal and vertical binning
  • Wavelength and geometric calibration
  • Various file formats: JPG, BMP, TXT, TIFF (16-bit), DAT raw data
  • Language support in English and German
  • Comprehensive visualization and image manipulation routines
  • Runs on 32/64-bit Windows systems

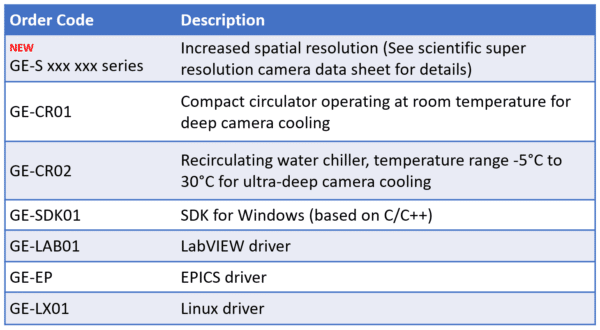

Visit the manufacturer’s website: www.greateyes.de

Also be sure to check out the ALEX and ELSE cameras by greateyes.

Applications

Physics
Manufacturer

Greateyes
Sensor Technology

CCD
Spectral Range

X-RAY (100 – 10,000 eV), VUV / EUV (6 – 100 eV)
Resolution

2048 x 2048 (4.2 MP), 1024 x 1024 (1.0 MP)
Pixel Pitch

13 µm x 13 µm, 13.5 µm x 13.5 µm
Frame Rate

< 10 fps
Readout Noise

2 – 10 e-
Interface

USB

Shop related products…
