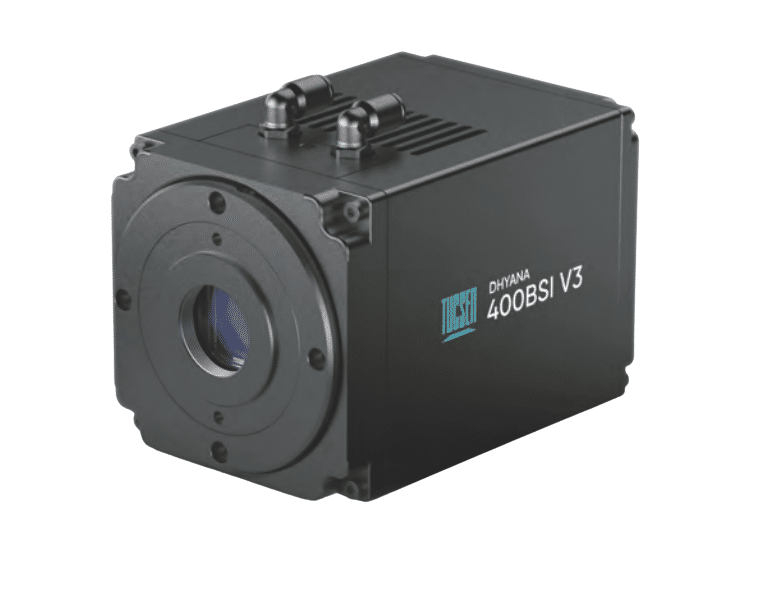

Dhyana 400BSI V3 | Low Noise sCMOS Camera

Sensor Technology

sCMOS

Quantum Efficiency

95% @ 600 nm

Readout Noise

CMS：1.1e-(Median)/1.2e-(RMS)

Resolution

2048x2048

Frame Rate

100fps@CameraLink [email protected]

Interface

USB3.0 / CameraLink

A New Breakthrough for New Discoveries!

The Dhyana 400BSI offers radical change across multiple core metrics including sensitivity, speed and resolution. It has a super-high quantum efficiency of 95% and achieves significant advancement in key technologies that deliver a readout noise of < 1 electron from a smaller 6.5um pixel size. These features enable greater performance in applications such as ultra-high resolution microscopy.

Compared to the 400BSI V2, the Dhyana 400BSI V3 achieves a vastly improved transmission speed and has a high-speed data transmission rate of 100 fps @ Cameralink and 40 fps @ USB3.0 at full resolution. To meet the demands for accurate quantification for high-end scientific imaging, including single molecule and super resolution, the 400BSI calibrated DSNU & PRNU, minimizing the difference between pixels and reducing fixed pattern noise. Thus, we can now achieve more accurate quantitative imaging data, providing a guarantee of reliable analysis results.

At the same time, the Dhyana 400BSI 3.0 preserves all the essences of Dhyana 400BSI V2, including the latest developed back-illuminated SCMOS sensor, ultra-high quantum efficiency of 95%, microscope-friendly 6.5 m x 6.5 m pixel and 1.2e- @ Median ultra-low readout noise.

The Dhyana 400BSI 3.0 weighs only 995g and has a low power consumption of 45W, making it the lightest and most energy-efficient camera in its class. Its size makes it ideal for integrating into small spaces.

Rolling Shutter Control Mode

Using Tucsen’s newly developed Rolling Shutter Control Mode technology, users can add defined line time delays or slit heights to synchronize scanning modes in applications like light-sheet microscopy.

Dhyana 400BSI V3 rolling shutter control mode

A New Breakthrough for New Discoveries!

The Dhyana 400BSI is a low cost sCMOS camera that offers radical change across multiple core metrics including sensitivity, speed and resolution. It has a super-high quantum efficiency of 95% and achieves significant advancement in key technologies that deliver a readout noise of < 1 electron from a smaller 6.5um pixel size. These features enable a greater performance in applications such as ultra-high resolution microscopy.

Compared to the 400BSI V2, the Dhyana 400BSI V3 achieves a vastly improved transmission speed and has a high-speed data transmission rate of 100 frames per second @ Cameralink and 40 frames per second @ USB3.0 at full resolution. To meet the demands for accurate quantification for high-end scientific imaging, including single molecule and super resolution, the 400BSI calibrated DSNU & PRNU, minimizing the difference between pixels and reducing fixed pattern noise. Thus, we can now achieve more accurate quantitative imaging data, providing a guarantee of reliable analysis results.

At the same time, the Dhyana 400BSI 3.0 preserves all the essences of Dhyana 400BSI V2, including the latest developed back-illuminated SCMOS sensor, ultra-high quantum efficiency of 95%, microscope-friendly 6.5 m x 6.5 m pixel and 1.2e- @ Median ultra-low readout noise.

The Dhyana 400BSI 3.0 low cost scmos camera weighs only 995g and has a low power consumption of 45W, making it the lightest and most energy-efficient camera in its class. Its size makes it ideal for integrating into small spaces.

Rolling Shutter Control Mode

Using Tucsen’s newly developed Rolling Shutter Control Mode technology, users can add defined line time delays or slit heights to synchronize scanning modes in applications like light-sheet microscopy.

Dhyana 400BSI V3 rolling shutter control mode

Dhyana 400BSI V3 Quantum efficiency curve

Dhyana 400BSI V3 Applications

    • Single Molecule Localization
    • Super Resolution Imaging
    • Neuron Fluorescence Imaging
    • TIRF Wide Field Imaging
    • SIM Cytoskeleton Imaging
    • Super-Resolution Microscopy
    • Real-Time Confocal Microscopy
    • Gene Sequencing
    • Live-Cell Imaging
    • Single Molecule Detection
    • Astronomy Observation
    • FRET
    • DIC

Dhyana 400BSI V3

Dhyana 400bsi Software

Third-party applications supported by the Dhyana 400BSI V3 include Mosaic, Micromanager, Labview, Matlab, etc., to provide more application support and help.



Click here to visit the manufacturer’s website.

Resolution

2048 x 2048 (4.2 MP)
Pixel Pitch

6.5 µm x 6.5 µm
Frame Rate

10 – 100 fps
Spectral Range

UV (200 – 400 nm), VIS (400 – 750 nm), NIR (750 – 1000 nm)
Readout Noise

1 – 2 e-
Interface

USB, Camera Link
