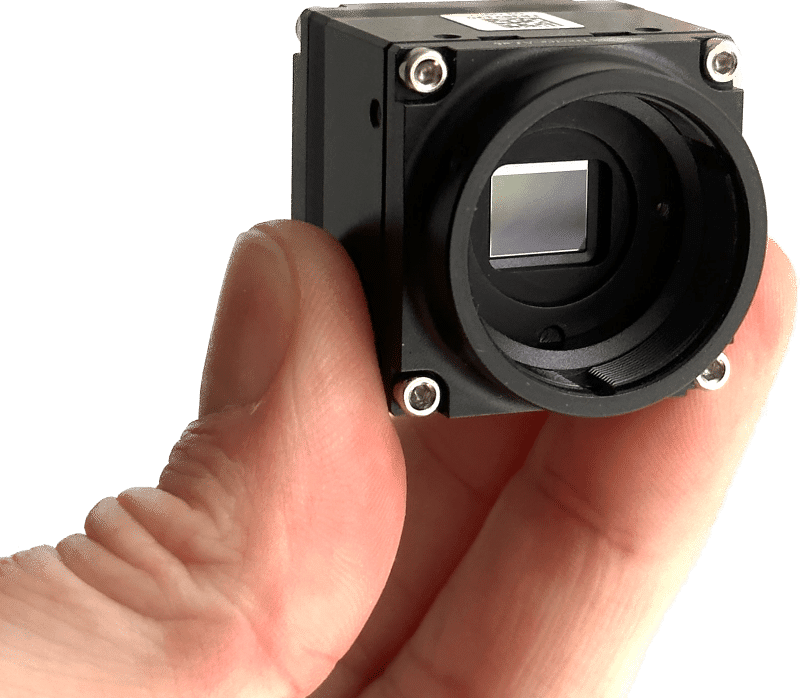

Crius 640 (previously) IrLugX640 thermal camera module held with two fingers
Crius 640 (previously) IrLugX640 thermal camera module held with two fingers

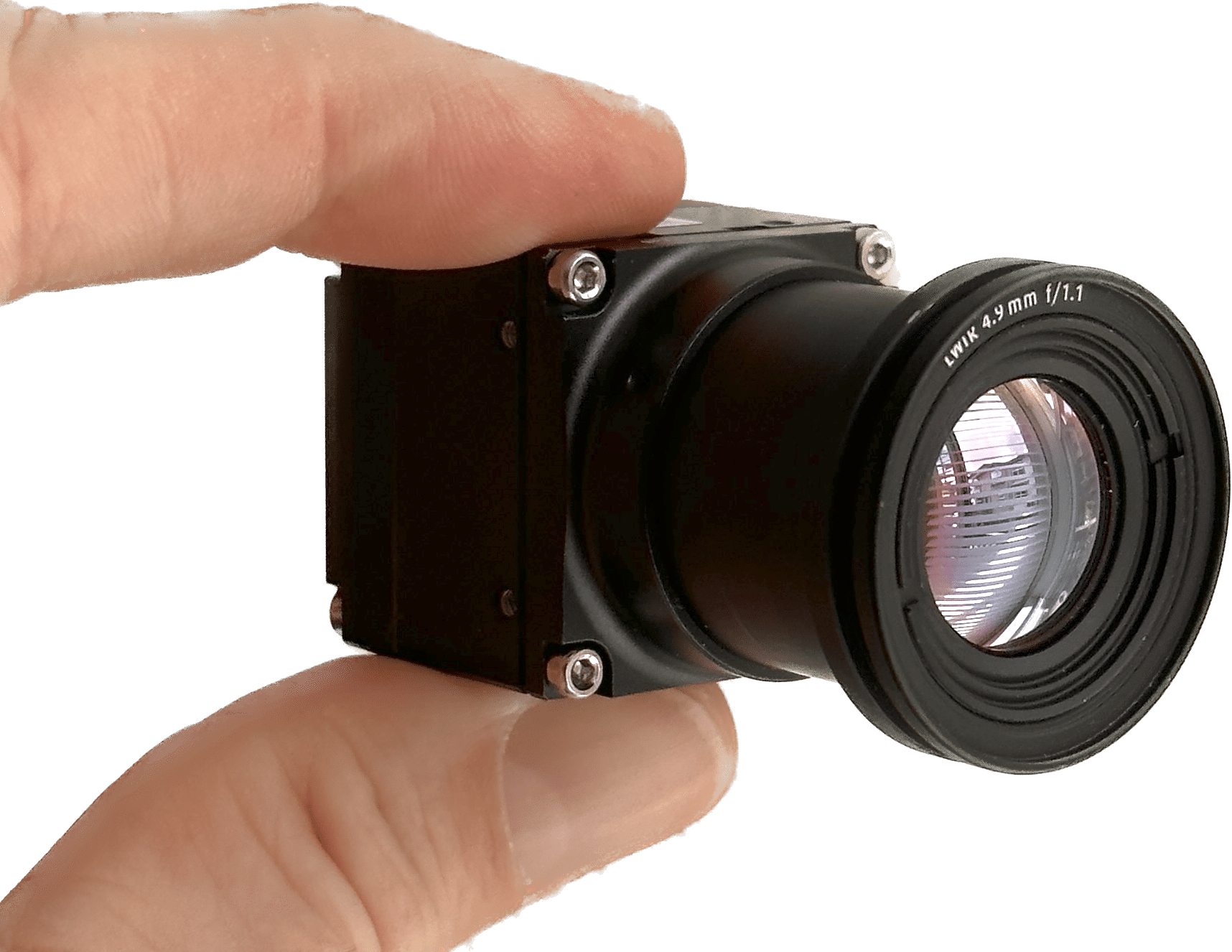

IrLugX640_4.9mm_ front_profile

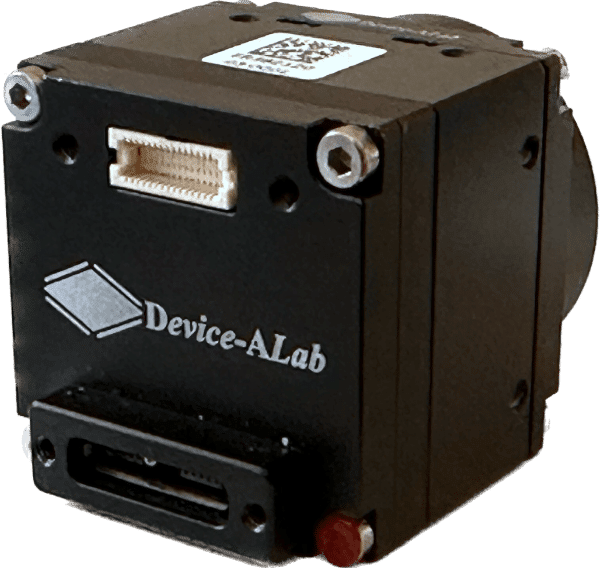

IrLugX640 thermal camera module with USB interface
Crius 640 (previously) IrLugX640 thermal camera module held with two fingers
IrLugX640 thermal camera module with USB interface
Crius 640 (previously) IrLugX640 thermal camera module held with two fingers
IrLugX640 thermal camera module with USB interface

Crius 640 | VGA Thermal Camera Module

Spectral range - Material

8 - 14 µm - VOx uncooled microbolometer

Frame rate full frame

9 - 60 Hz

Resolution - Pixel Pitch

640 x 480 px - 12 µm

Dimensions - Weight

30 x 30 x 30 mm3 (no lens, no shutter) - < 40g

Interfaces

USB3, CameraLink, HD/3G-SDI, DF40

Image Processing

Bad pixel correction, NUC, shutterless

Light and Compact Thermal Camera Module

The Crius 640 (formerly IrLugX640) VGA thermal camera module boasts a resolution of 640 x 480 pixels with a 12 µm pitch. The high-definition sensor consists of an uncooled microbolometer array developed by Lynred. With its extreme low size of 30 x 30 x 30 mm3, weight <40g and power consumption under 0.9W, the Crius 640 is designed for easy integration into sub-systems. Using standard USB3.0 interface with RAW 16-bit video streaming, the  Crius 640 is the perfect plug-and-play solution for embedded systems. Interfacing with your host controller is made easy thanks to a comprehensive SDK providing support for configuration, control and processing (BPR, UC, Image enhancement, AGC).

Two versions are available:

  • Without on-board processing: USB3.0 interface outputting RAW 16-bit video streaming without any on-board processing. This plug-and-play solution for embedded systems interfaces with your host controller thanks to a comprehensive SDK providing support for configuration, control and image processing (Bad pixel replacement, non-uniformity correction and shutterless function).
  • With on-board processing: CameraLink, HD/3G-SDI, DF40, MIPI CSI-2 outputting ready-to-use images including all the image corrections. Additional functions are available such as global/local AGC, digital zoom up to 4x and overlays.

The Crius 640 comes with a shutterless function and a ‘time to image’ under 6 seconds from power up. For applications requiring it, an optional mechanical shutter is available. The VGA (640 x 480 pixels) format of this HD thermal camera module offers unmatched image quality with an NETD as low as 40 mK.

The Crius 640 is a dual-use (non-ITAR) thermal camera module with a frame rate up to 120 Hz.

See our other LWIR thermal cores here.

Light and Compact Thermal Camera Module

The Crius 640 (formerly IrLugX640) VGA thermal camera module boasts a resolution of 640 x 480 pixels with a 12 µm pitch. The high-definition sensor consists of an uncooled microbolometer array developed by Lynred. With its extreme low size of 30 x 30 x 30 mm3, weight <40g and power consumption under 0.9W, the Crius 640 is designed for easy integration into sub-systems. Using standard USB3.0 interface with RAW 16-bit video streaming, the  Crius 640 is the perfect plug-and-play solution for embedded systems. Interfacing with your host controller is made easy thanks to a comprehensive SDK providing support for configuration, control and processing (BPR, UC, Image enhancement, AGC).

Two versions are available:

  • Without on-board processing: USB3.0 interface outputting RAW 16-bit video streaming without any on-board processing. This plug-and-play solution for embedded systems interfaces with your host controller thanks to a comprehensive SDK providing support for configuration, control and image processing (Bad pixel replacement, non-uniformity correction and shutterless function).
  • With on-board processing: CameraLink, HD/3G-SDI, DF40, MIPI CSI-2 outputting ready-to-use images including all the image corrections. Additional functions are available such as global/local AGC, digital zoom up to 4x and overlays.

The Crius 640 thermal camera module comes with a shutterless function and a ‘time to image’ under 6 seconds from power up. For applications requiring it, an optional mechanical shutter is available. The VGA (640 x 480 pixels) format of this HD thermal camera module offers unmatched image quality with an NETD as low as 40 mK.

The Crius 640 is a dual-use (non-ITAR) thermal camera module with a frame rate up to 120 Hz.

Thermal Camera Applications

  • UAVs, UGVs and Robotics
  • Handheld Thermal Imaging
  • Surveillance, Security and Maritime Cameras
  • Night Vision Goggles
  • Automotive and Aircraft Safety Vision
  • Machine Vision Inspection
  • Medical Imaging

Crius 640 Software

For USB interface only

Free IrLugX Viewer (GUI)

  • Calibration wizard (up to 8 maps: gain and/or offset tables)
  • Easy and fast Import/Export of gain, offset & data to Matlab; ImageJ, Excel, …
  • BPR (Bad Pixel Replacement); NUC (Non Uniformity Correction); AGC (Automatic Gain Correction) management can be done in a few clicks.

Free SDK compatible with

  • Windows x86 / 64 bits PC
  • Linux x86 / 64bits (including Ubuntu 18.04)
  • ARMv7 (32bits) et ARMv8 (64bits)

See our other LWIR thermal cores here.

Crius 640 Datasheet

Resolution

640 x 480
Pixel Pitch

12 µm x 12 µm
Detector Type

Uncooled Microbolometer
Frame Rate Full Frame

60 Hz full frame
Interface

USB, HD/3G-SDI, DF40, Camera Link
