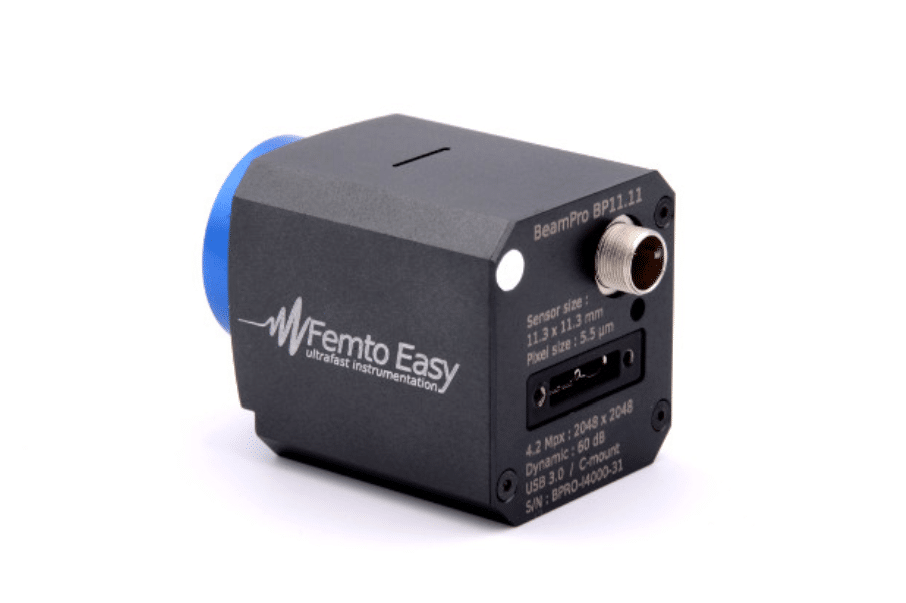

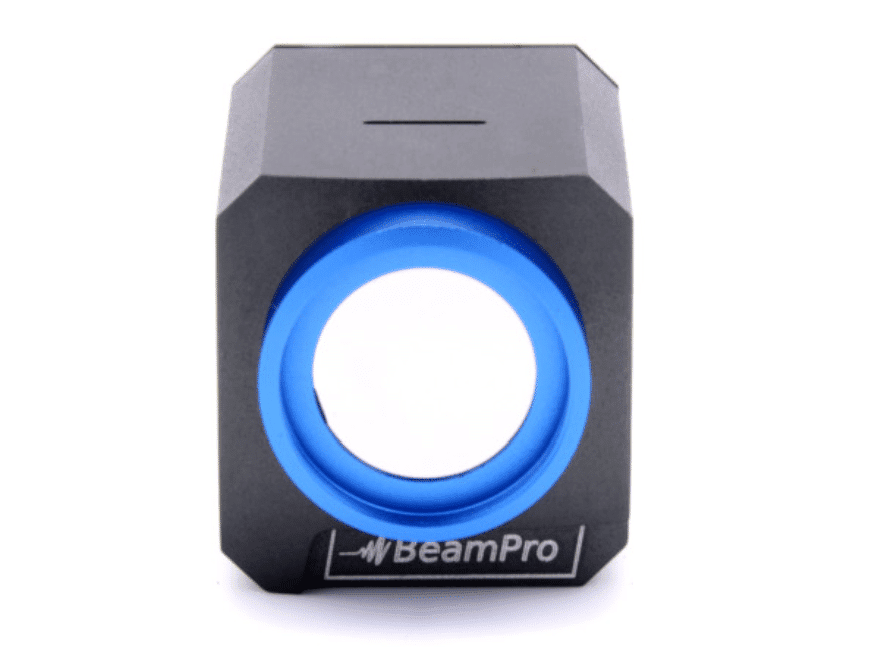

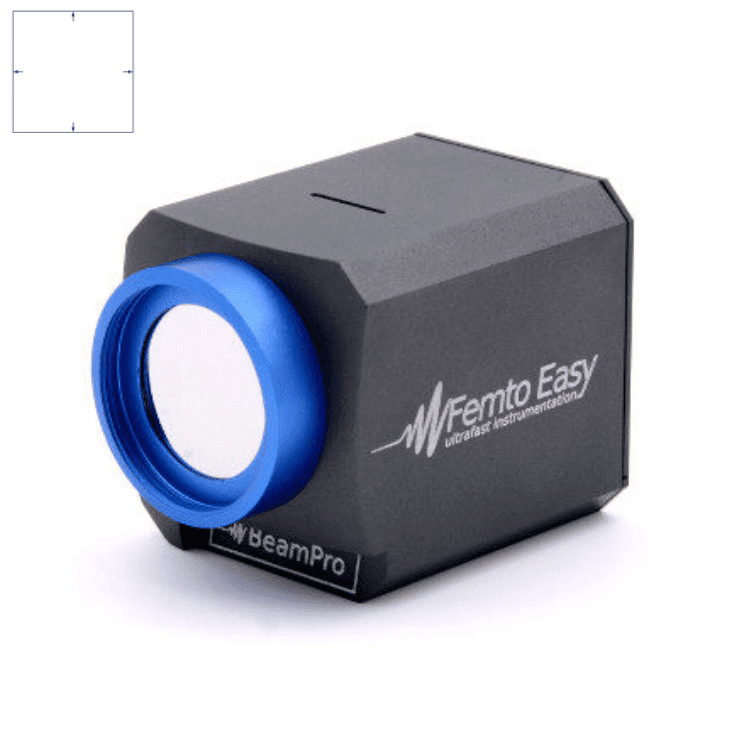

SoftwareLaser Beam Profiler: BeamPro Large Area
For those dealing with larger beam diameters, the Femto Easy BeamPro Large Area beam profiler is the perfect solution. Designed for laser beam diameters greater than 10 mm, this profiler boasts the largest sensor area available, ensuring exceptional accuracy in measuring collimated laser beams of up to 30 mm without the need for additional optics.
The Femto Easy BeamPro line is specifically designed for beam diameters exceeding 7 mm. This ensures unparalleled accuracy in measuring focused laser beams down to 10 µm or less, thanks to its smallest pixel size available in the market.
Powered by user-friendly software, the Femto Easy BeamPro provides comprehensive analysis and statistical data of your laser beam, enabling you to optimize your laser systems with ease. Its software employs standard communication protocols, allowing seamless integration into various environments. Plus, with the ability to control multiple BeamPro units remotely via network connectivity, managing your laser beam analysis has never been easier.
Engineered to accommodate a wide range of applications, the Femto Easy BeamPro supports wavelengths from 190 to 1100 nm and sensor sizes of up to 25 mm. For even higher resolution, we offer models with pixels as small as 1.45 μm, ideal for precise measurements of focused beams.
To select the right beam profiler for your application, visit our application page.
Beam Profiler Software STAR
BeamPro comes with a powerful and very user friendly software, designed with touch screens in mind, in order to give you the best user experience.
- Live extraction of beam properties, even with resolutions larger than 20 Mpx
- Several parameters and methods supported (ISO calculation included)
- Enhanced background & hot pixels treatment for optimum dynamic and signal-to-noise ratio
- Client / Server interface, allowing remote control through network
- Advanced logging and permanent access to the 10 previous acquisitions
- Live comparison with up to 10 different reference measurements
- 1-click installation, completely configurable, export assistant
Options |
|
| Windowless | Removal of the BeamPro sensor window to avoid potential interferences |
| UV extension | Increases the BeamPro wavelength range to the UV region, down to 190 nm |
| Additional ND filters | The default BeamPro configuration includes one ND filter. Additional ones with different specifications can be ordered |
| Custom version on request | BeamPro based on different type of camera (resolution, pixel size, sensor material) can be developed on request |
| High dynamic range | Software mode to increase the dynamic of the BeamPro signal acquisition from 12 to 16 bits. Not compatible with pure single-shot measurement as 2 images are necessary to build one beam profile image |
| Trigger | Synchronization of the BeamPro detection to an external signal for accurate laser single pulse measurement |
| Vacuum compatible | Possibility to place the BeamPro and perform measurements directly inside a UHV vacuum chamber (not available for all models, please contact us for details) |
