Tucsen Dhyana 401D Uncooled Scientific CMOS Camera

Tucsen Dhyana 401D Uncooled Scientific CMOS Camera

Sensor Technology

sCMOS

Sensor Size

1.2"

Readout Noise

HighGain: 1.9e-(Median)/2.0e-(RMS)

Resolution

2048x2048

Sensor Model/Frame Rate

74fps@CameraLink ; 40fps@USB3.0

Interface

USB3.0 / CameraLink

Scientific Image Sensor

The Dhyana series use sCMOS sensors, compared to a CCD structure, sCMOS differs because amplification and A/D conversion takes place on the sensor. Each column of pixels is connected to a high gain and low gain amplifier followed by an A/D converter. Therefore, sCMOS not only has the advantage of low readout noise and high sensitivity, but also high-speed CMOS readout speed.

Industrial size

The Dhyana uncooled series is designed to meet the needs of customers in more fields. It is designed specifically for industrial environments. The camera’s shape has been optimized to be compact and robust.

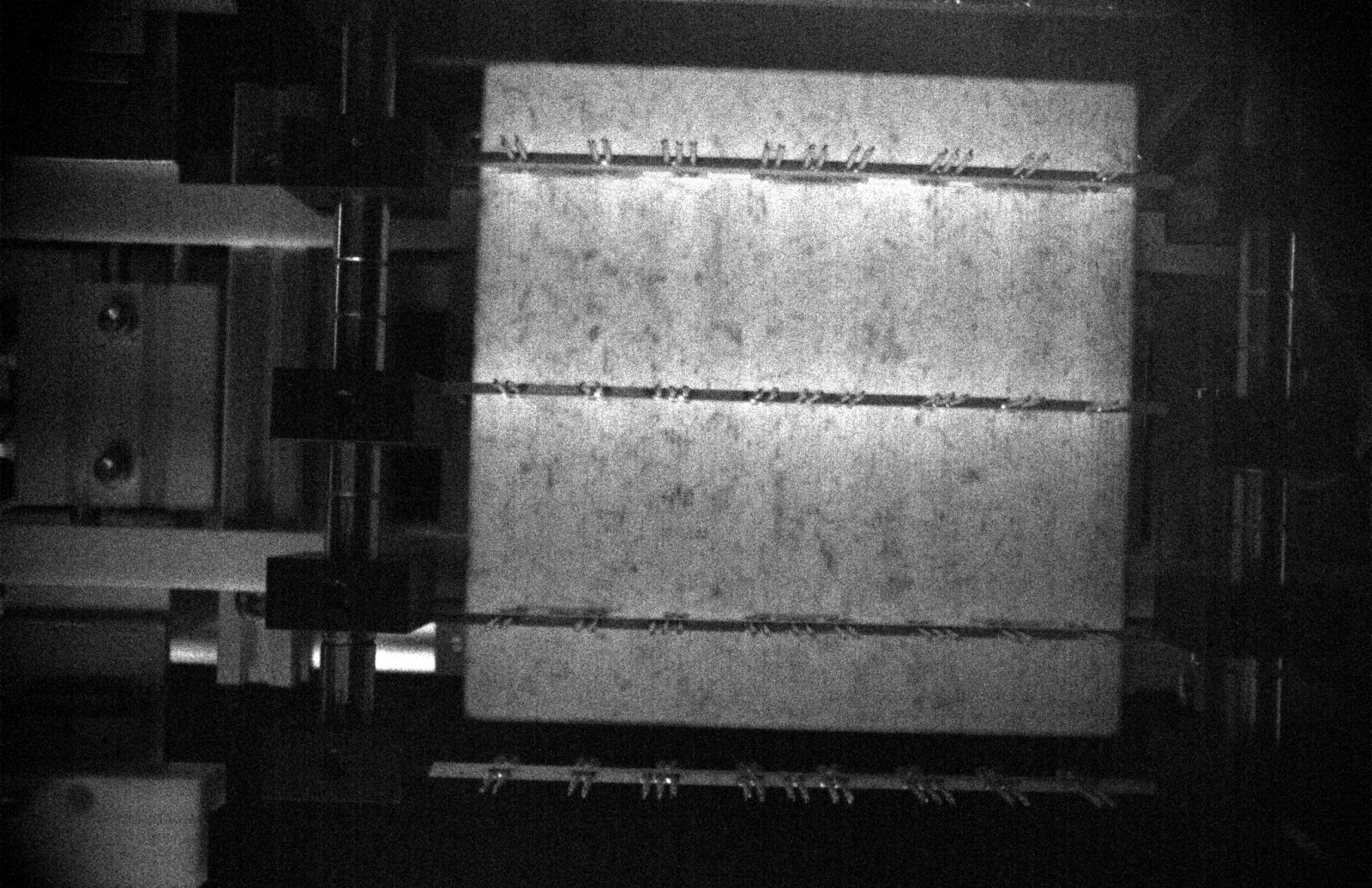

Ultra-low light imaging

The Dhyana series is highly sensitive and designed for industrial applications in scientific or very low light environments. Among them, the minimum detectable illumination of Dhyana 901 is 0.0001lux, and it has been successfully applied in bio fluorescence imaging, spectrometry and industrial detection.

Description

The Dhyana series use Scientific CMOS sensors, compared to a CCD structure, sCMOS differs because amplification and A/D conversion takes place on the sensor. Each column of pixels is connected to a high gain and low gain amplifier followed by an A/D converter. Therefore, scientific CMOS not only has the advantage of low readout noise and high sensitivity, but also high-speed CMOS readout speed.
Industrial size
The Dhyana uncooled series is designed to meet the needs of customers in more fields. It is designed specifically for industrial environments. The camera’s shape has been optimized to be compact and robust.
Ultra-low light imaging
The Dhyana series is highly sensitive and designed for industrial applications in scientific or very low light environments. Among them, the minimum detectable illumination of Dhyana 901 is 0.0001lux, and it has been successfully applied in bio fluorescence imaging, spectrometry and industrial detection.
Visit the manufacturer’s website: http://www.tucsen.com.
For more high performance CMOS and CCD Cameras: https://axiomoptics.com/scientific-industrial-cameras/#low-light-cameras
