µROC - Smallest Single-shot Autocorrelator

µROC – Smallest Single-shot Autocorrelator

Dimensions

30 mm x 40 mm x 45 mm

Laser type

Ti:Sa, Yb, Yb-s

Single shot extraction

Up to 100 kHz

Beam height

20 mm

Interface

USB3.1

Categories: Laser Beam Characterization, Ultrafast Laser Measurement

ROC stands for Row Optical Correlator. Based on an ultra compact and robust inline setup, the μ-ROC takes the ROC concepts to its limit for the measurement of single-shot autocorrelation traces in the smallest housing footprint ever. Based on the latest patented design from Femto Easy, leveraging several years of experience in the single-shot ultrafast instrumentation, the μ-ROC is specifically designed for OEM direct integration into laser heads or laser systems.

Ultra compact, and non sensitive to alignment, can be used as a simple camera
Robust design, no moving parts. Non sensitive to vibrations
Directly powered by the USB cable, no power supply required
Suitable for any repetition rate. Single-pulse extraction possible up to 100 kHz laser repetition rate (with Trigger option)
User-friendly and powerful software. REST API for standard software integration using simple HTTP requests

µROC model	Ti:Sa	Yb	Yb-s
Min pulse duration (fs)	20-50*	50 - 150*	25 - 50*
Max pulse duration (fs)	500	1500	1000
Accessible spectral range (nm)	700-900	1020 - 1080	1020 - 1080
Input repetition rate	any	any	any
Single pulse measurement	up to 100 kHz	up to 100 kHz	up to 100 kHz
Min input pulse energy** - single shot	25 µJ	5 µJ	5 µJ
Min input pulse energy - 1 MHz	100 nJ	10 nJ	10 nJ
Min input pulse energy - 100 MHz	5 nJ	0.5 nJ	0.5 nJ
Input polarization	linear horizontal or vertical	linear horizontal or vertical	linear horizontal or vertical
Detection	CMOS 12-bit	CMOS 12-bit	CMOS 12-bit
PC interface	USB 3.1	USB 3.1	USB 3.1
Beam height (mm)	20	20	20
Dimensions (mm3)	30 x 40 x 45	30 x 40 x 45	30 x 40 x 45

*The two minimum pulse duration values correspond to the Fourier limited pulse duration with and without GDD precompensation.

**Those values give an order of magnitude. The exact sensitivity depends on many parameters (pulse duration, beam profile, wavelength…)

Data Sheet and Brochures

FemtoEasy_uROC_datasheet

Live extraction of shot to shot pulse duration
Different calculation methods available for proper pulse estimation (Raw data FWHM, Gaussian fit, sech2…)
Enhanced background & hot pixels treatment, for optimum dynamic and signal to noise ratio
Client / Server interface, and REST API for the easiest integration
All data exportable into most common formats

Trigger
Enhanced detection

Description

Description

Autocorrelators are used to measure pulse duration. The basic principle is to create two copies of the incoming beam, with a beam splitter. Those copies are superimposed in a nonlinear medium, where they interact generating a third beam. As the overlap of the two copies depends on the pulse duration, analysing the third beam allows to calculate the pulse duration. The ROC autocorrelator is a single-shot autocorrelator, thus it needs one single pulse to measure the duration. It is very compact and extremly easy to use. Only two minutes are necessary to get the measurement !

ROC stands for Row Optical Correlator. Based on an ultra compact and robust inline setup, the ROC allows the measurement of single-shot autocorrelation traces. Specifically designed to offer the easiest user experience, they cannot be misaligned and no calibration or tweaking is needed. Also, they are easily transportable. And yes, they are rock-solid! Besides those advantages, the ROC autocorrelators provide excellent technical performances and highly accurate measurements. The ROC autocorrelators are available for different wavelength ranges and several pulse durations.

MS-ROC stands for Multi-Shot Row Optical Correlator. The MS-ROC allows the measurement of autocorrelation traces. It is based on second harmonic generation, making it reliable and compact. It has been specially developed for sources with sub-nJ energy per pulse. It allows the measurement of pulses from 50 fs to 40 ps in the standard version. With its high scan speed, real-time operations is possible for measurement and optimization. The MS-ROC-LP can perform scan at 130 ps/s, making it the fastest scanning autocorrelator on the market. Also, the MS-ROC-SP allows the measurement of both ultra-short and long pulses thanks to its dual-mode (standard mode for pulse duration > 50 fs and fine-scan mode for pulse < 50 fs). Like every products, the MS-ROC is easy to install and use.

MS-ROC features include:

Ultra simple alignment (2 min to setup)
Large pulse duration measurement range (from 5 fs to 80 ps)
High sensitivity (sub-nJ pulse)
User-friendly and powerful software (STAR : Software Technology for Acquisition and retrieval)
Broad available spectral range
Fiber connector available (FC/APC, FC/PC)

MEASUREMENT OF FEW CYCLE PULSES

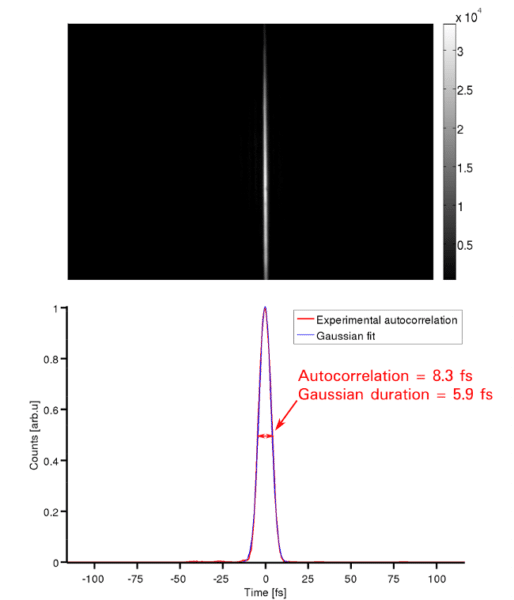

This is an autocorrelation measurement sample of ultrashort pulse that has been performed in Politecnico di Milano with our short pulse model autocorrelator ROC FC. On the top, the raw image of the spatially resolved autocorrelation trace. At the bottom, the analysed autocorrelation trace integrated over the spatial coordinate. The experimental data (in red) are fitted by a Gaussian function (in blue). The full width at half maximum of the autocorrelation trace is 8.3 fs. The corresponding Gaussian pulse duration is 5.9 fs.

MEASUREMENT OF LOW ENERGY PULSES

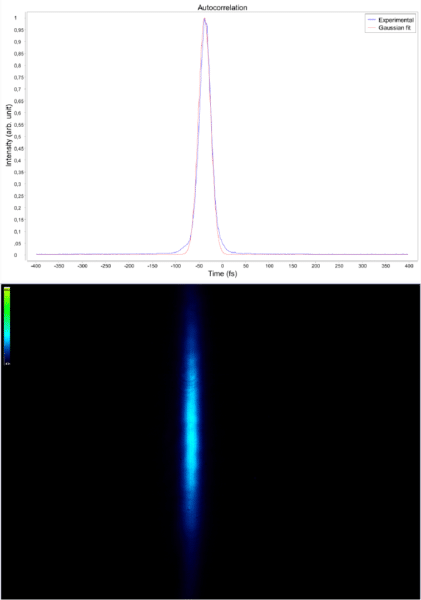

This measurement has been performed on a femtosecond Ti:Sapph oscillator at LCAR with a ROC FC autocorrelator. The average power used for the measurement was with only 20 mW at 62 MHz repetition rate. It means that in this conditions 0.3 nJ per pulse was enough to get a clean measurement. At the buttom, the raw image of the spatially resolved autocorrelation trace. On the top, the analysed autocorrelation trace integrated over the spatial coordinate. The experimental data (in blue) are fitted by a Gaussian function (in red). The full width at half maximum of the autocorrelation trace is 30.4 fs for a Gaussian pulse duration of 21.5 fs.
